TOYOTA CAMRY WG VCV10R-CWPGKW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

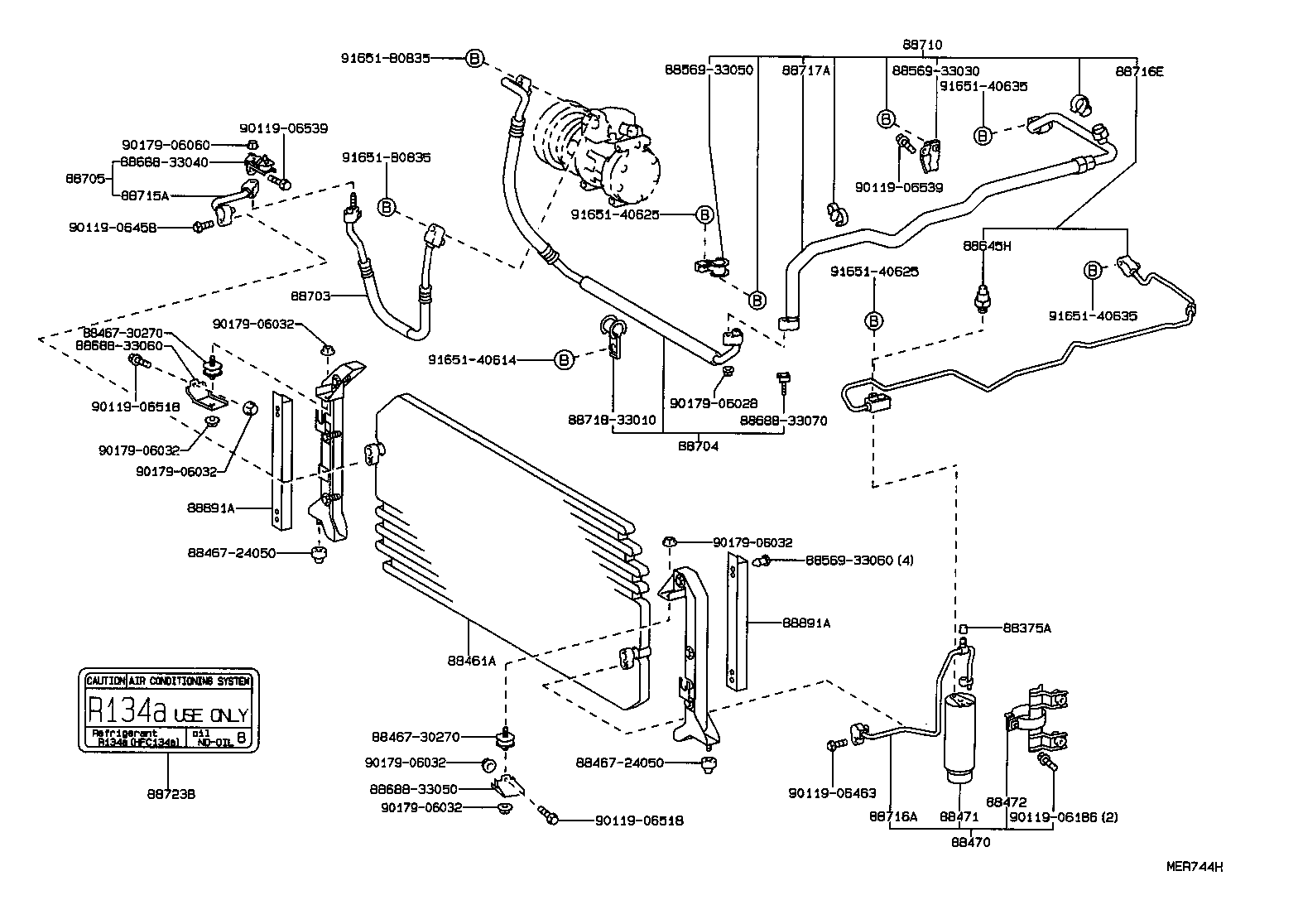

MAKER OPT ILLUST NO. 1 OF 2(9106-9408)VCV10..NAP..RHD

 CAMRY WG |  HEATING AIR CONDITIONING COOLER PIPING 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88461A - CORE, COOLER CONDENSER  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88470 - RECEIVER & DRYER ASSY, COOLER 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1  ** Std Part  ** Std Part  ** Std Part 88645H - SWITCH, PRESSURE NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88705 - PIPE SUB-ASSY, DISCHARGE 88710 - TUBE ASSY, AIRCONDITIONER 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A  ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION 88891A - PACKING A (FOR COOLER) 88891A - PACKING A (FOR COOLER)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
