TOYOTA CAMRY WG VCV10R-CWPGKW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

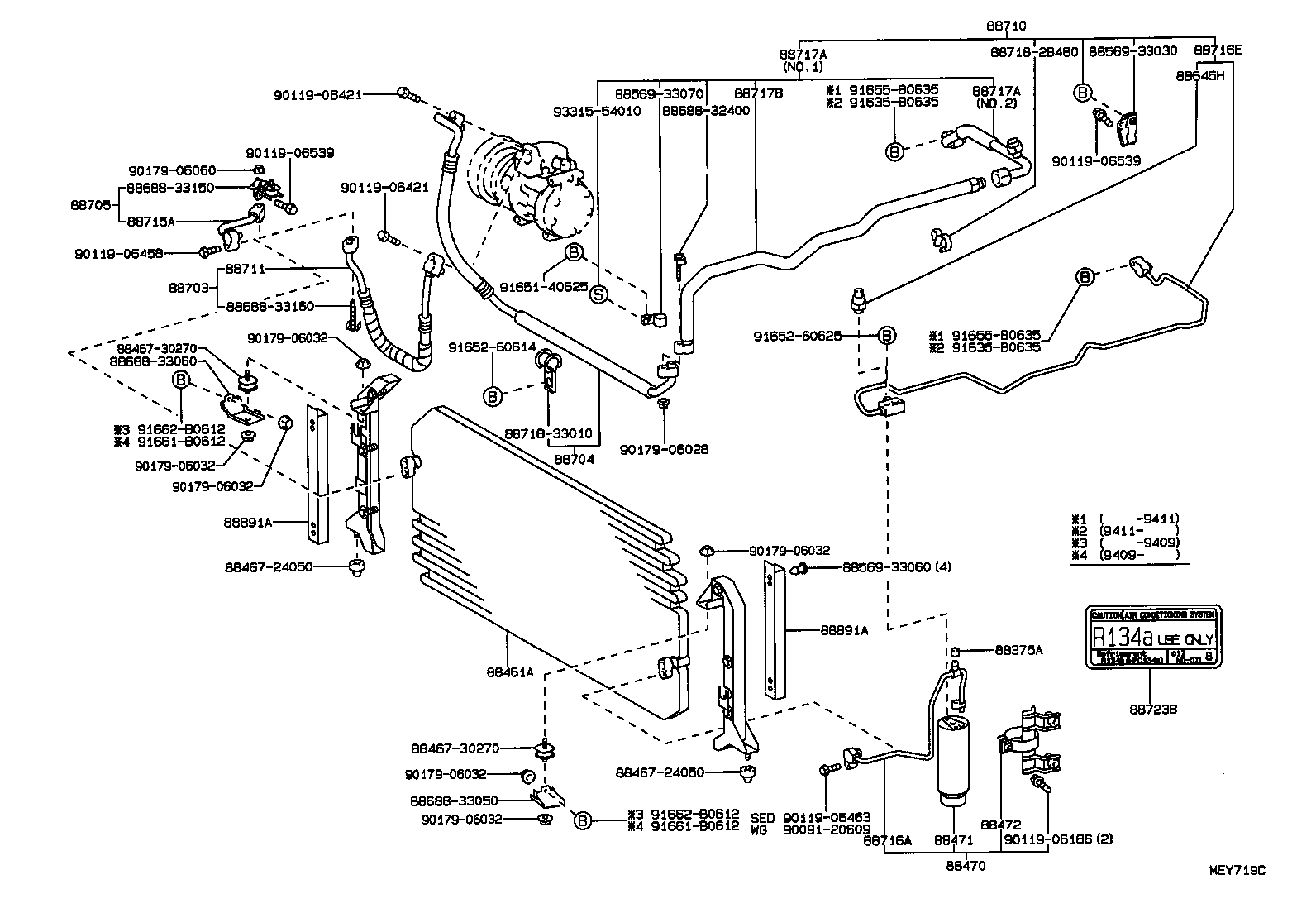

HEATING AIR CONDITIONING COOLER PIPING

MAKER OPT ILLUST NO. 1 OF 2(9408-9608)VCV10..NAP..RHD

CAMRY WG | HEATING AIR CONDITIONING COOLER PIPING 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88461A - CORE, COOLER CONDENSER ** Std Part ** Std Part ** Std Part ** Std Part 88470 - RECEIVER & DRYER ASSY, COOLER 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 ** Std Part ** Std Part ** Std Part 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88705 - PIPE SUB-ASSY, DISCHARGE 88710 - TUBE ASSY, AIRCONDITIONER 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B ** Std Part ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION 88891A - PACKING A (FOR COOLER) 88891A - PACKING A (FOR COOLER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
