TOYOTA SUPRA JZA80L-AJFVZW / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

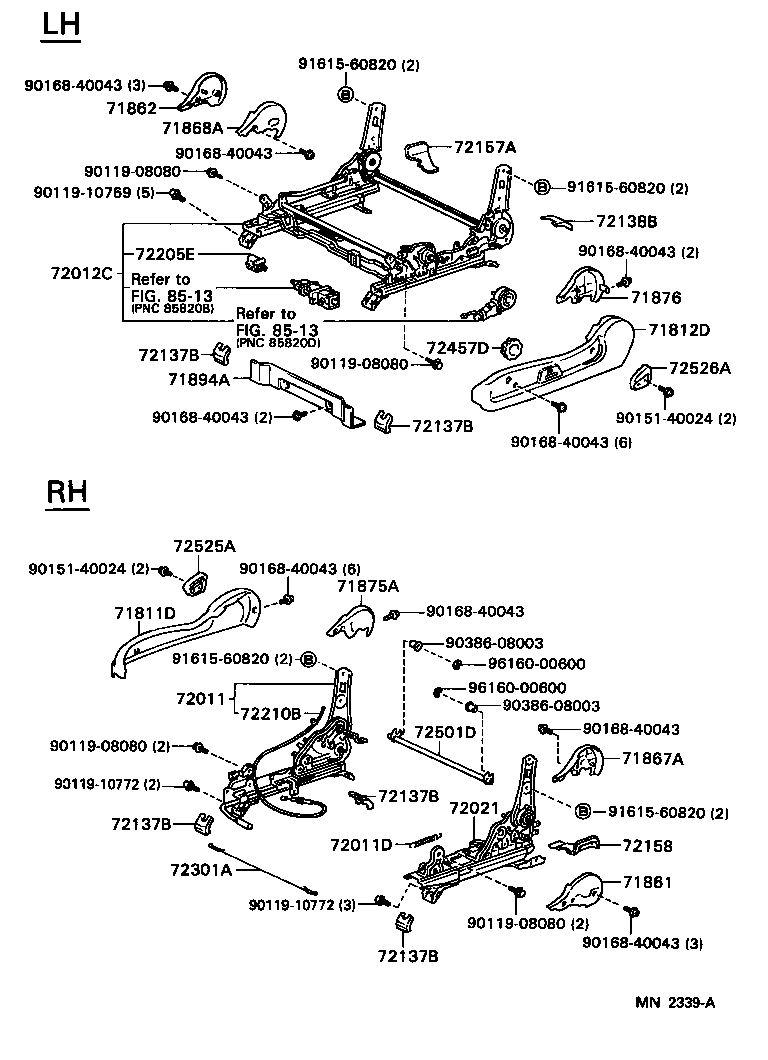

FRONT SEAT SEAT TRACK

ILLUST NO. 2 OF 2(9305- )LHD

SUPRA | FRONT SEAT SEAT TRACK 71811D - SHIELD, FRONT SEAT CUSHION, RH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71894A - SHIELD, POWER ADJUSTER, FRONT LH 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH 72137B - COVER, SEAT TRACK, RH 72137B - COVER, SEAT TRACK, RH 72137B - COVER, SEAT TRACK, RH 72137B - COVER, SEAT TRACK, RH 72137B - COVER, SEAT TRACK, RH 72138B - COVER, SEAT TRACK, LH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72205E - HOUSING SUB-ASSY, POWER SEAT, NO.1 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
