TOYOTA TERCEL EL53L-AEPRKA / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

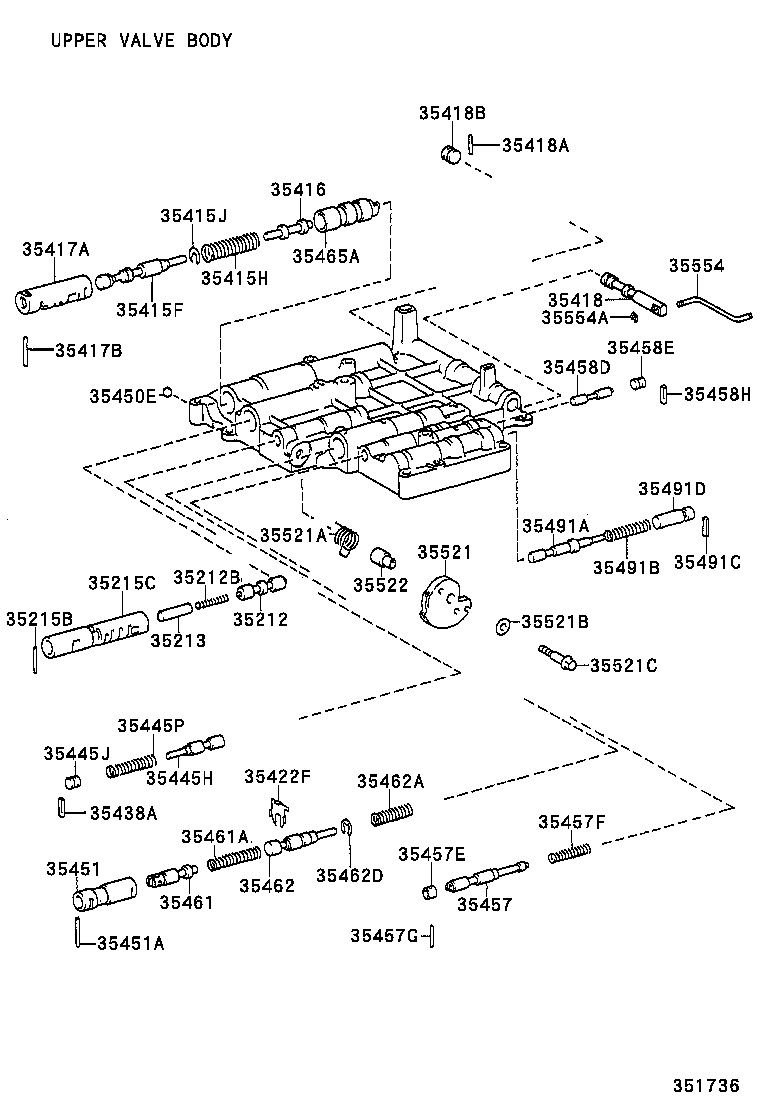

VALVE BODY OIL STRAINER ATM

A242L ILLUST NO. 2 OF 5(9409- )4FC

TERCEL | VALVE BODY OIL STRAINER ATM 35212 - VALVE, LOCK UP RELAY 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) 35213 - VALVE, LOCK UP RELAY CONTROL 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 35415F - VALVE, PRIMARY REGULATOR 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 35417A - SLEEVE, PRIMARY REGULATOR VALVE 35417B - PIN, STRAIGHT (FOR PRIMARY REGULATOR VALVE SLEEVE) 35418 - VALVE, MANUAL 35418A - PIN, STRAIGHT (FOR MANUAL VALVE) 35418B - PLUG (FOR MANUAL VALVE) 35422F - STOPPER, VALVE VIBRATING 35438A - SEAT, 2ND COAST MODULATOR VALVE SPRING 35445H - VALVE, 2ND COAST MODULATOR 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) 35450E - BALL (FOR UPPER VALVE BODY) 35451 - SLEEVE, THROTTLE VALVE 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) 35457 - VALVE, THROTTLE MODULATOR 35457E - PLUG (FOR THROTTLE MODULATOR VALVE) 35457F - SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE) 35457G - PIN, STRAIGHT (FOR THROTTLE MODULATOR VALVE) 35458D - VALVE, CUT BACK 35458E - PLUG (FOR CUT BACK VALVE) 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) 35461 - PLUG, DOWN SHIFT 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) 35462 - VALVE, THROTTLE 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) 35462D - RING, E (FOR THROTTLE VALVE) 35465A - SLEEVE, PRIMARY REGULATOR VALVE PLUNGER 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1) 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) 35521 - CAM, THROTTLE VALVE 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) 35521B - WASHER (FOR THROTTLE VALVE CAM SET) 35521C - BOLT (FOR THROTTLE VALVE CAM SET) 35522 - PIN, THROTTLE VALVE CAM 35554 - ROD, MANUAL VALVE CONNECTING 35554A - RING, E (FOR MANUAL VALVE CONNECTING ROD)
