TOYOTA COASTER RZB40L-ZRMSU / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

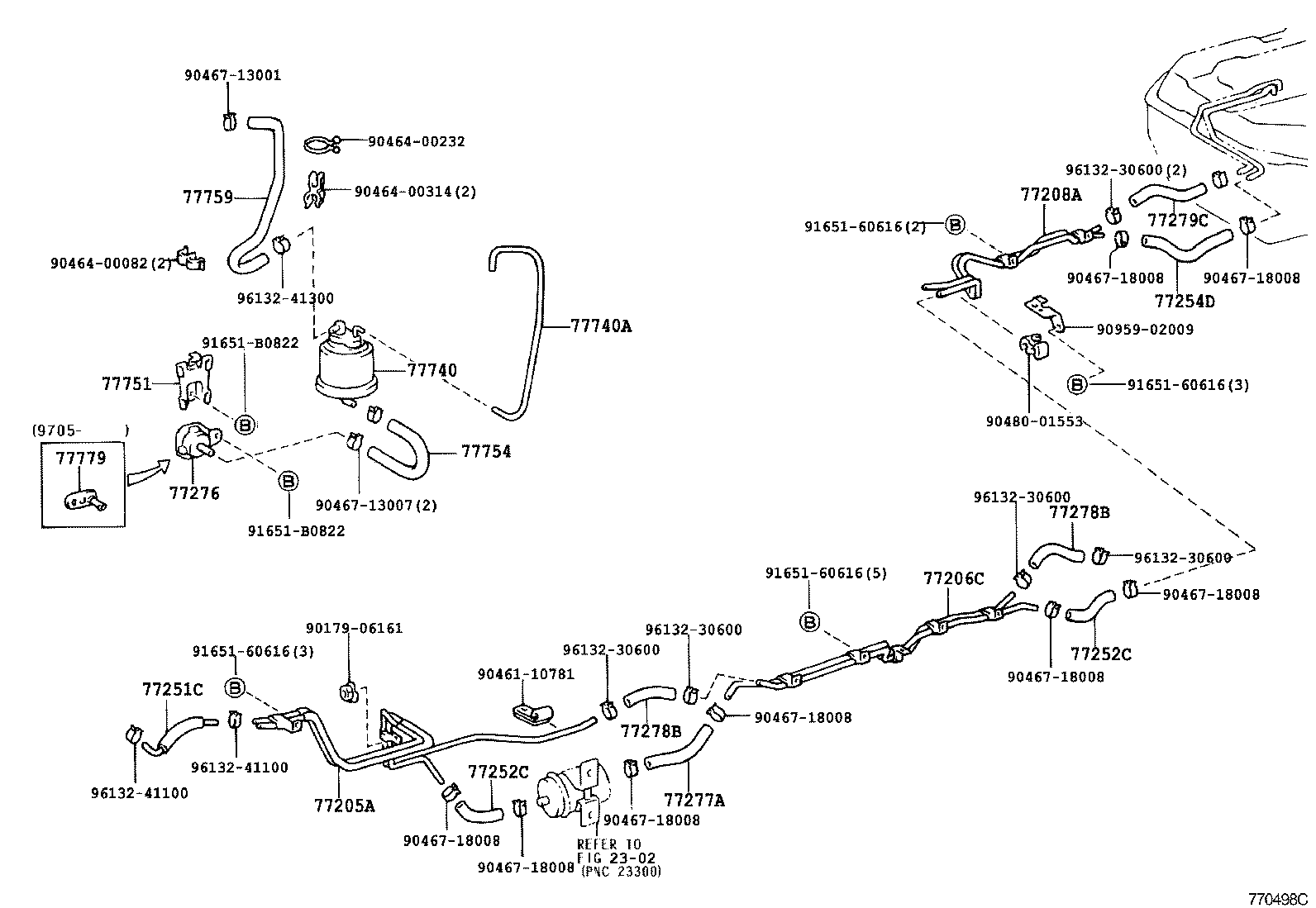

FUEL TUBE ILLUST NO. 2 OF 4(9309-9907)RZB40

 COASTER |  FUEL TANK TUBE ** Refer Fig 77205A - TUBE SUB-ASSY, FUEL MAIN 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) 77254D - HOSE, FUEL 77276 - PROTECTOR, FUEL HOSE 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) 77279C - HOSE, FUEL 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77759 - HOSE, CHARCOAL CANISTER 77779 - TUBE, CHARCOAL CANISTER OUTLET  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
