TOYOTA TERCEL EL53L-ADPRKA / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VACUUM PIPING

(9603-9608)

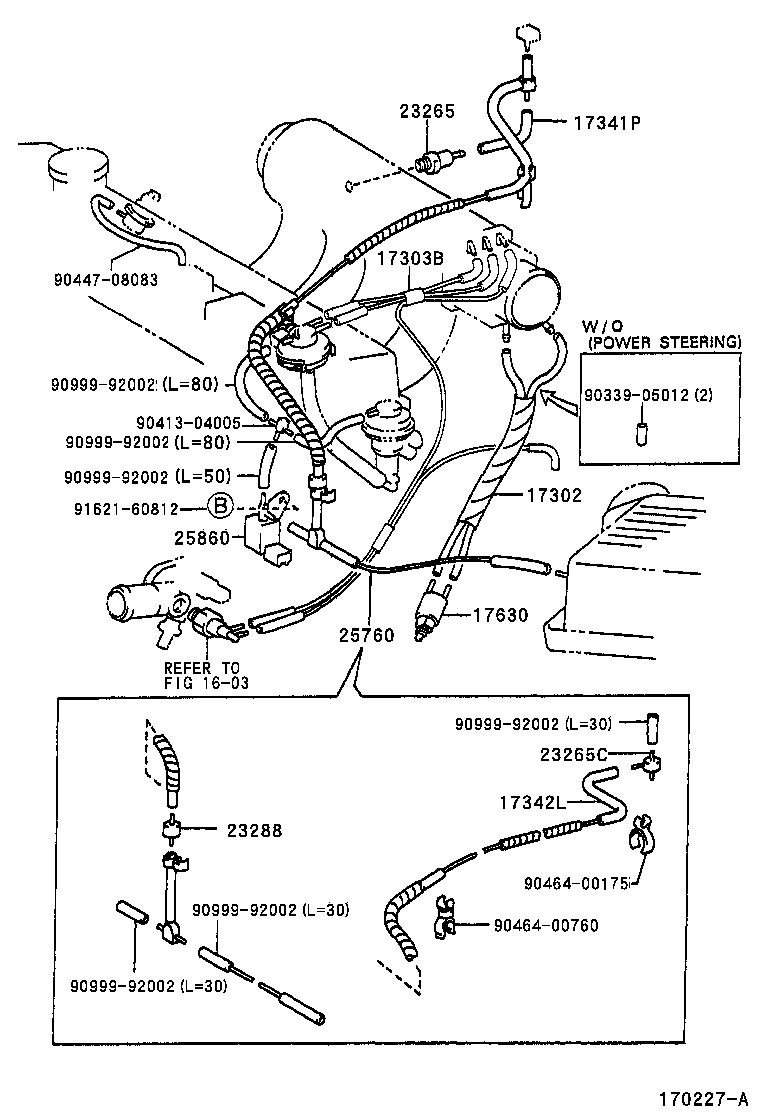

 TERCEL |  VACUUM PIPING ** Refer Fig 17302 - HOSE SUB-ASSY, AIR 17303B - PIPE SUB-ASSY, AIR, NO.1 17341P - HOSE, AIR 17342L - HOSE, AIR, NO.2 17630 - VALVE ASSY, AIR CONTROL 23265 - FILTER, GAS, NO.1 23265C - FILTER, GAS 23288 - JET, NO.1 25760 - HOSE ASSY, VACUUM TRANSMITTING 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
