TOYOTA AVENSIS ST220L-AWMEKW / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

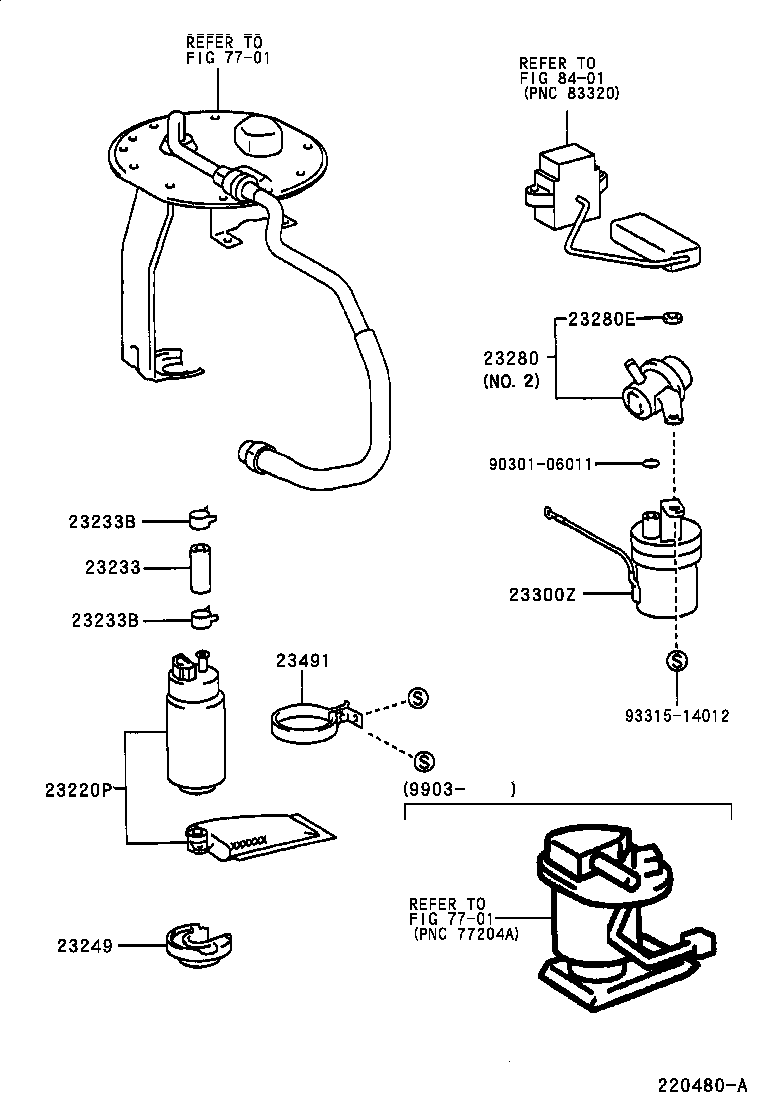

TYPE A ILLUST NO. 2 OF 2(9710-0007)3SFE

 AVENSIS |  FUEL INJECTION SYSTEM 23220P - PUMP ASSY, FUEL 23233 - HOSE, FUEL PUMP 23233B - CLIP(FOR FUEL PUMP HOSE) 23233B - CLIP(FOR FUEL PUMP HOSE) 23249 - RUBBER, CUSHION(FOR FUEL PUMP) 23280 - REGULATOR ASSY, FUEL PRESSURE 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) 23300Z - FILTER, FUEL(FOR FUEL TANK) 23491 - CLAMP, FUEL FILTER EARTH ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part
