TOYOTA COASTER BB50R-ZEMQW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

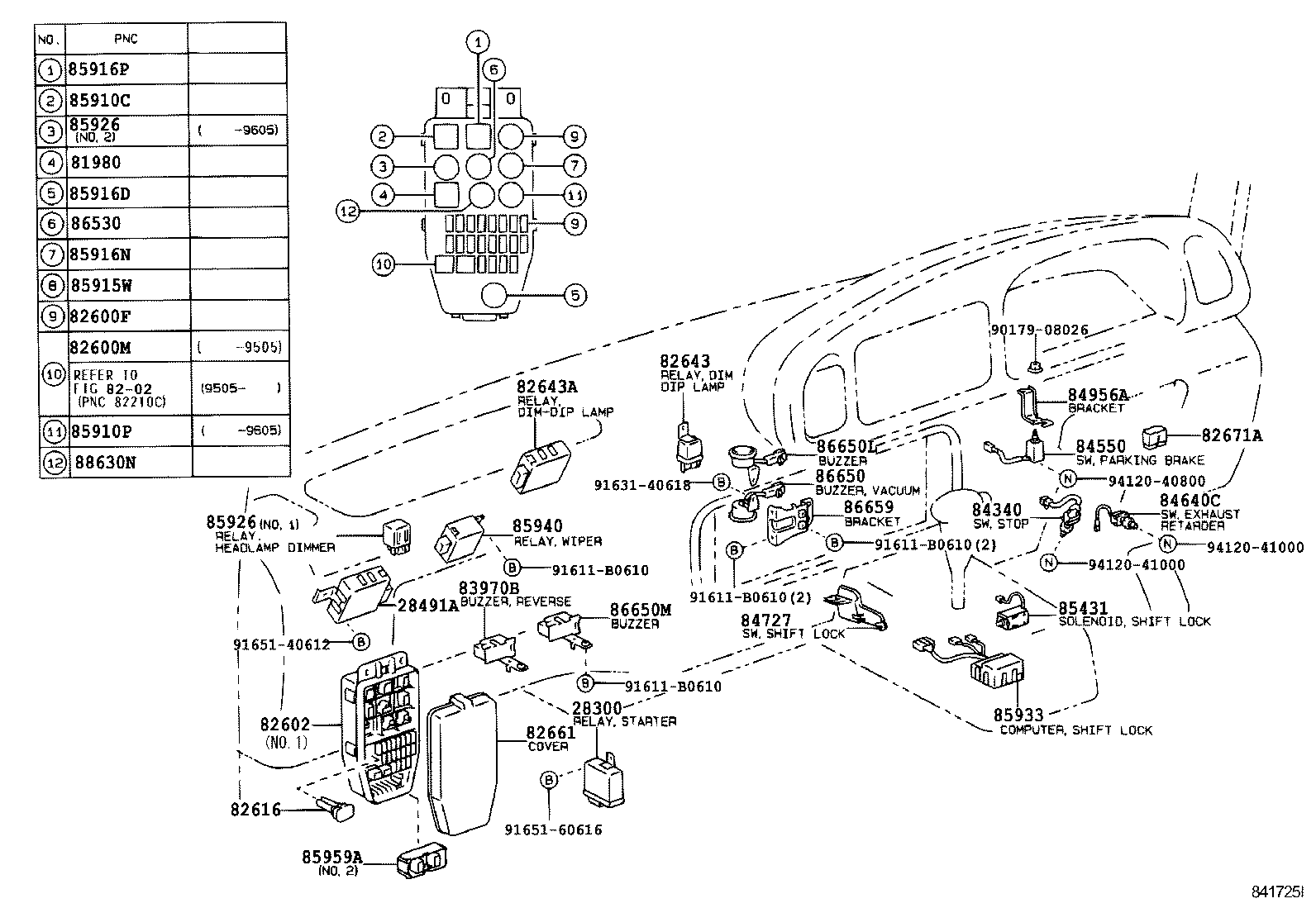

INSTRUMENT PANEL & COWL ILLUST NO. 3 OF 6(9301-9907)RHD

COASTER | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28491A - COMPUTER, EXHAUST RETARDER 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600M - FUSE, MEDIUM CURRENT 82602 - BLOCK SUB-ASSY, RELAY 82616 - PULLER, FUSE 82643 - RELAY, DIM-DIP LAMP 82643A - RELAY, DIM-DIP LAMP 82661 - COVER, RELAY BLOCK, NO.1 82671A - BLOCK, JUNCTION 83970B - BUZZER ASSY, REVERSE WARNING 84340 - SWITCH ASSY, STOP LAMP 84550 - SWITCH ASSY, PARKING BRAKE 84640C - SWITCH ASSY, EXHAUST RETARDER 84727 - SWITCH, SHIFT LOCK CONTROL 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH 85431 - SOLENOID, SHIFT LOCK 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910P - RELAY, TURBO INDICATOR 85915W - RELAY, AUTOMATIC DOOR 85916D - RELAY, FOG LAMP 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85926 - RELAY, HEADLAMP DIMMER 85933 - COMPUTER, SHIFT LOCK CONTROL 85940 - RELAY ASSY, WINDSHIELD WIPER 85959A - HOLDER, RELAY 86530 - RELAY ASSY, HORN 86650 - BUZZER ASSY, VACUUM INDICATOR 86650L - BUZZER ASSY, VACUUM WARNING 86650M - BUZZER ASSY, EMERGENCY 86659 - BRACKET, BUZZER 88630N - RELAY ASSY, COOLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
