TOYOTA COASTER BB50R-ZEMQW / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING WATER PIPING

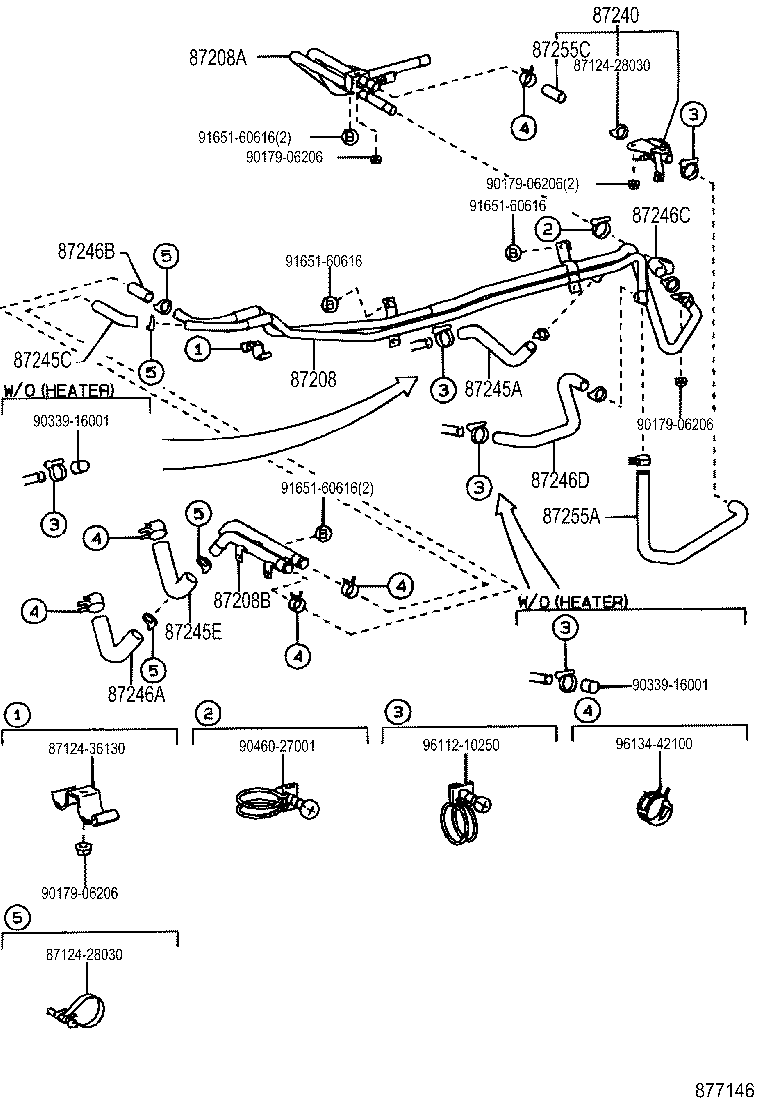

FRONT ILLUST NO. 1 OF 3(9301-9907)BB4#,5#,RZB40,50

COASTER | HEATING AIR CONDITIONING WATER PIPING ** Std Part ** Std Part ** Std Part 87208 - PIPE SUB-ASSY, HEATER WATER 87208A - PIPE SUB-ASSY, HEATER WATER, A 87208B - PIPE SUB-ASSY, HEATER WATER, B 87240 - VALVE ASSY, HEATER WATER 87245A - HOSE, HEATER WATER, INLET A 87245C - HOSE, HEATER WATER ,INLET C 87245E - HOSE, HEATER WATER, INLET E 87246A - HOSE, HEATER WATER, OUTLET A 87246B - HOSE, HEATER WATER, OUTLET B 87246C - HOSE, HEATER WATER, OUTLET C 87246D - HOSE, HEATER WATER, OUTLET D 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) 87255C - HOSE, REAR HEATER WATER INLET, C ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
