TOYOTA COASTER BB50R-ZEMQW / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COMPRESSOR

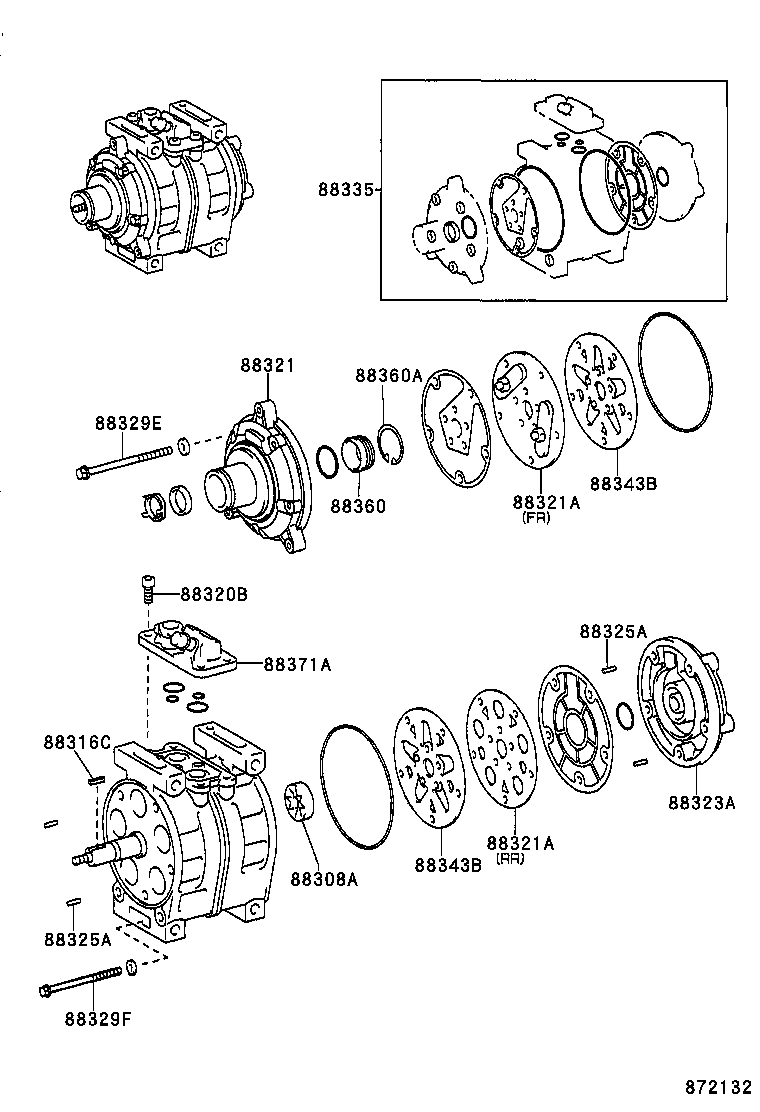

ILLUST NO. 2 OF 2(9301-0408)

COASTER | HEATING AIR CONDITIONING COMPRESSOR 88308A - PUMP SUB-ASSY,OIL 88316C - KEY, COMPRESSOR CRANKSHAFT 88320B - BOLT, SERVICE VALVE 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321A - PLATE SUB-ASSY, VALVE 88321A - PLATE SUB-ASSY, VALVE 88323A - GASKET, COMPRESSOR 88325A - PIN, CYLINDER BLOCK 88325A - PIN, CYLINDER BLOCK 88329E - BOLT, COMPRESSOR, NO.1 88329F - BOLT, COMPRESSOR, NO.2 88335 - GASKET KIT, OVERHAUL 88343B - REED, SUCTION VALVE 88343B - REED, SUCTION VALVE 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT 88360A - RING, COMPRESSOR SEAL PLATE SNAP 88371A - VALVE, SUCTION
