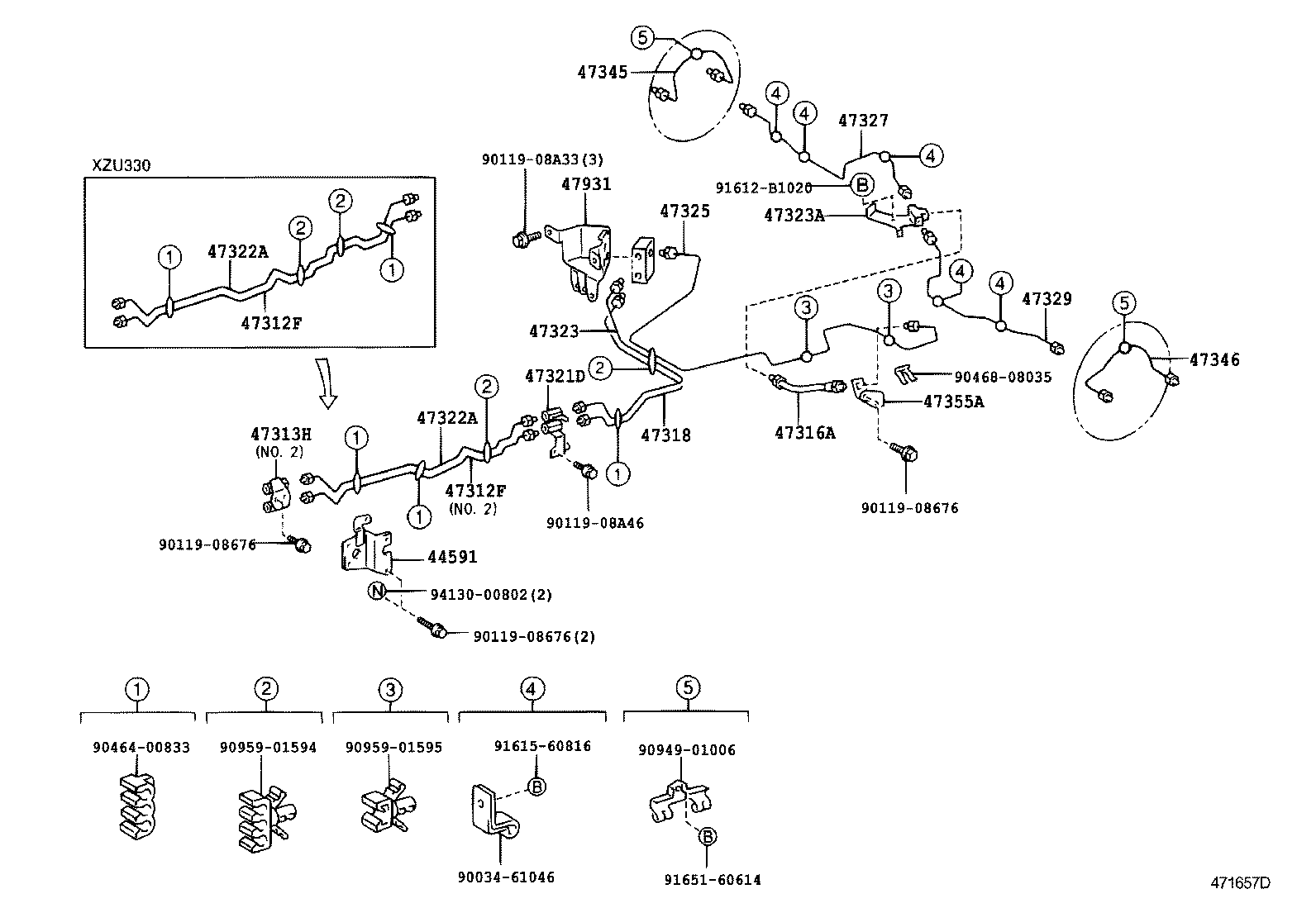

BRAKE TUBE CLAMP

ILLUST NO. 2 OF 4(9907- )XZU300,330..20T,30T

DYNA | BRAKE TUBE CLAMP 44591 - BRACKET, BRAKE ACTUATOR, NO.1 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47318 - TUBE, FRONT BRAKE, NO.8 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) 47322A - TUBE, REAR BRAKE, FRAME NO.2 47322A - TUBE, REAR BRAKE, FRAME NO.2 47323 - TUBE, REAR BRAKE, NO.3 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) 47325 - TUBE, REAR BRAKE, NO.5 47327 - TUBE, REAR BRAKE, NO.7 47329 - TUBE, REAR BRAKE, NO.9 47345 - TUBE, WHEEL CYLINDER, REAR RH 47346 - TUBE, WHEEL CYLINDER, REAR LH 47355A - BRACKET, FLEXIBLE HOSE, NO.5 47931 - BRACKET, LOAD SENSING VALVE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
