TOYOTA HIACE VAN COMUTER LH103R-RBPRSQ / TOOL-ENGINE-FUEL / INJECTION PUMP BODY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

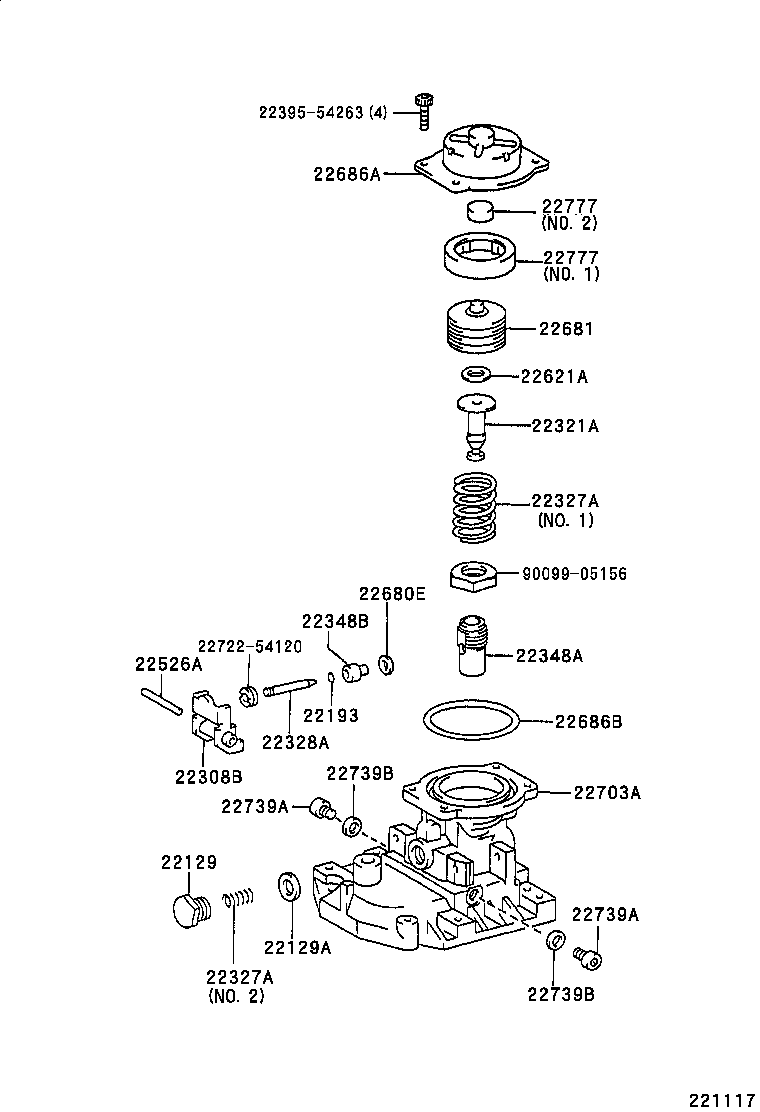

INJECTION PUMP BODY

ILLUST NO. 2 OF 2(8908-0008)3L..LH103,113,125..4FC

HIACE VAN COMUTER | INJECTION PUMP BODY 22129 - PLUG, SCREW 22129A - WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG) 22193 - RING, O(FOR LEVER CONNECTING PIN) 22308B - LEVER SUB-ASSY, CONTROL 22321A - ROD, PUSH 22327A - SPRING(FOR BELLOWS) 22327A - SPRING(FOR BELLOWS) 22328A - PIN, LEVER CONNECTING 22348A - BUSHING, GUIDE 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) ** Std Part 22526A - PIN, LEVER SUPPORT 22621A - WASHER, TIMER ADJUSTING 22680E - WASHER, COPPER PLATE 22681 - BELLOWS SUB-ASSY, PNEUMATIC 22686A - COVER, PNEUMATIC BELLOWS 22686B - RING, O(FOR BELLOWS COVER) 22703A - COVER SUB-ASSY, GOVERNOR ** Std Part 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) 22777 - CAP, RUBBER(FOR BELLOWS) 22777 - CAP, RUBBER(FOR BELLOWS) ** Std Part
