TOYOTA LAND CRUISER 100 HDJ100L-GNPEZW / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

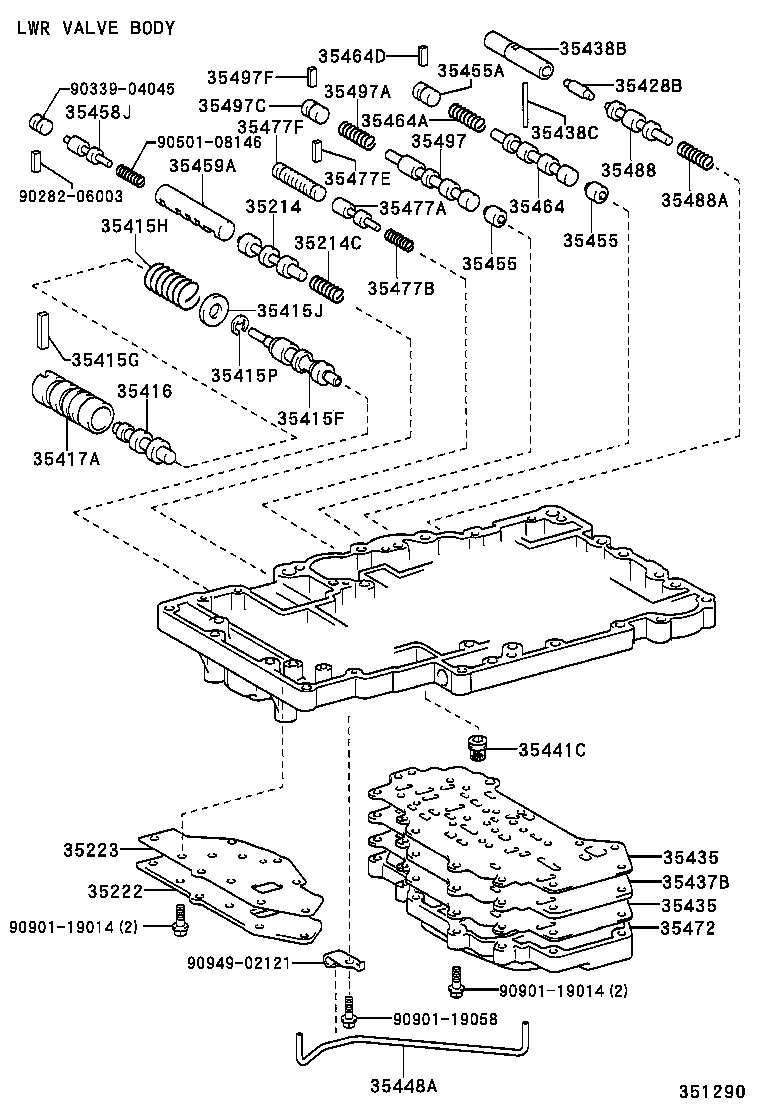

VALVE BODY OIL STRAINER ATM

A442F ILLUST NO. 3 OF 4(9801-0208)HDJ100..4FC

LAND CRUISER 100 | VALVE BODY OIL STRAINER ATM 35214 - VALVE, LOCK UP CONTROL 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) 35222 - PLATE, LOCK UP RELAY VALVE BODY 35223 - GASKET, LOCK UP RELAY VALVE BODY 35415F - VALVE, PRIMARY REGULATOR 35415G - KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE) 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) 35415P - RING, E (FOR PRIMARY REGULATOR VALVE) 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 35417A - SLEEVE, PRIMARY REGULATOR VALVE 35428B - PLUG, 2-3 SHIFT TIMING VALVE 35435 - GASKET, VALVE BODY PLATE, NO.3 35435 - GASKET, VALVE BODY PLATE, NO.3 35437B - PLATE, VALVE BODY COVER 35438B - SLEEVE, 2-3 SHIFT TIMING VALVE PLUG 35438C - PIN, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE) 35441C - STRAINER, SOLENOID OIL 35448A - TUBE, PRIMARY REGULATOR VALVE APPLY 35455 - PLUG, 1-2 SHIFT VALVE LOW 35455 - PLUG, 1-2 SHIFT VALVE LOW 35455A - PLUG (FOR 1-2 SHIFT VALVE LOW PLUG) 35458J - VALVE, CUT BACK 35459A - SLEEVE, THROTTLE VALVE, NO.2 35464 - VALVE, 1-2 SHIFT 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) 35472 - COVER, VALVE BODY, NO.2 35477A - VALVE, OVERDRIVE CLUTCH EXHAUST 35477B - SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE) 35477E - KEY, STRAIGHT (FOR OVERDRIVE CLUTCH EXHAUST VALVE) 35477F - PLUG (FOR OVERDRIVE CLUTCH EXHAUST VALVE) 35488 - VALVE, 2-3 SHIFT TIMING 35488A - SPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE) 35497 - VALVE, 3-4 SHIFT 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) 35497C - PLUG (FOR 3-4 SHIFT VALVE) 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
