TOYOTA AVENSIS CDT220R-AWMNYW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COOLER PIPING

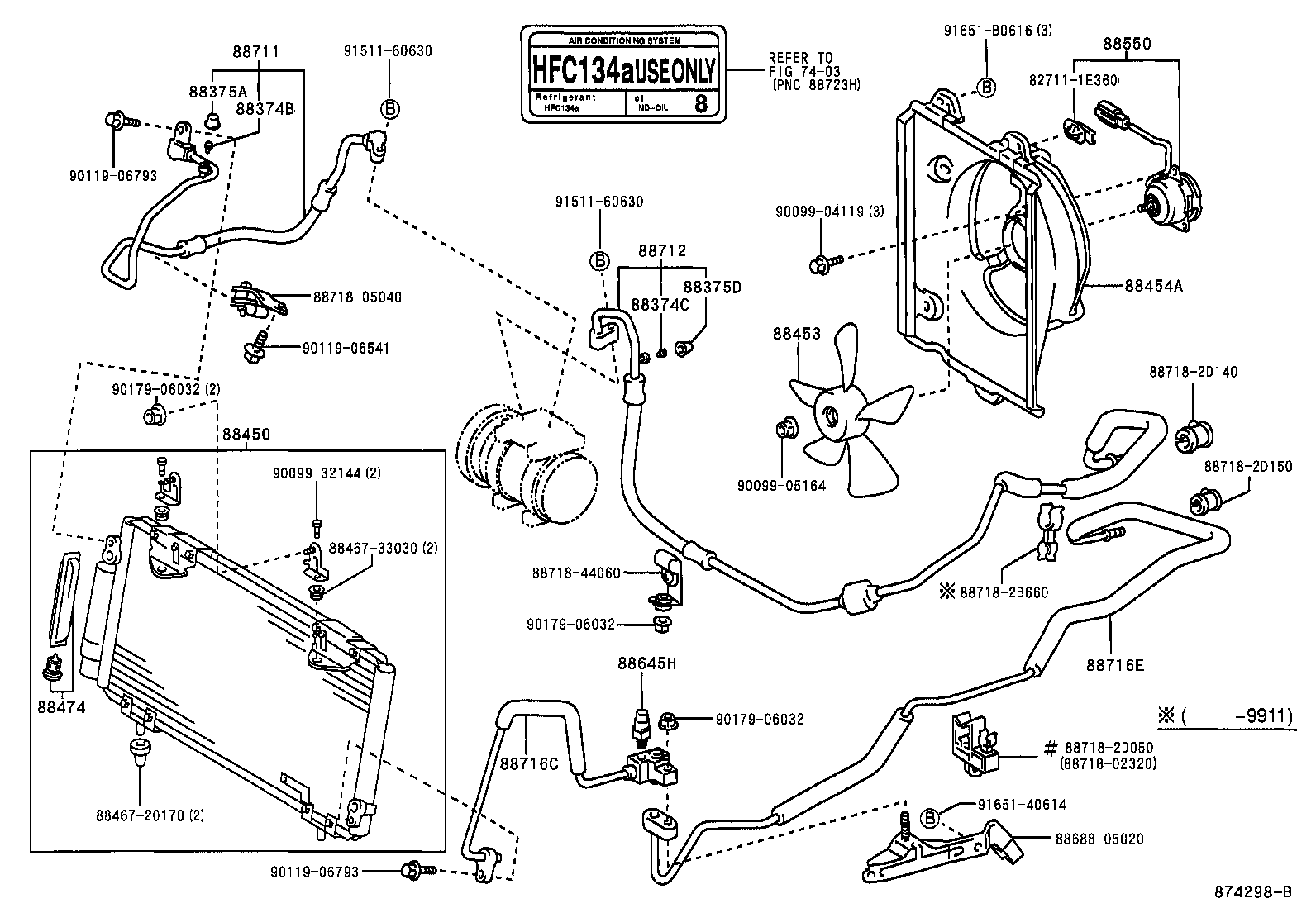

MAKER OPTION ILLUST NO. 1 OF 2(0007- )CDT220..RHD

AVENSIS | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Std Part 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88375D - CAP, SERVICE VALVE, NO.2 88450 - CONDENSER ASSY, W/RECEIVER 88453 - FAN, COOLING (FOR CONDENSER) 88454A - SHROUD, FAN ** Std Part ** Std Part 88474 - DRYER, COOLER 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88645H - SWITCH, PRESSURE NO.1 ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88716E - PIPE, COOLER REFRIGERANT LIQUID, E ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
