TOYOTA DYNA 100 LY100L-PSMASW3 / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

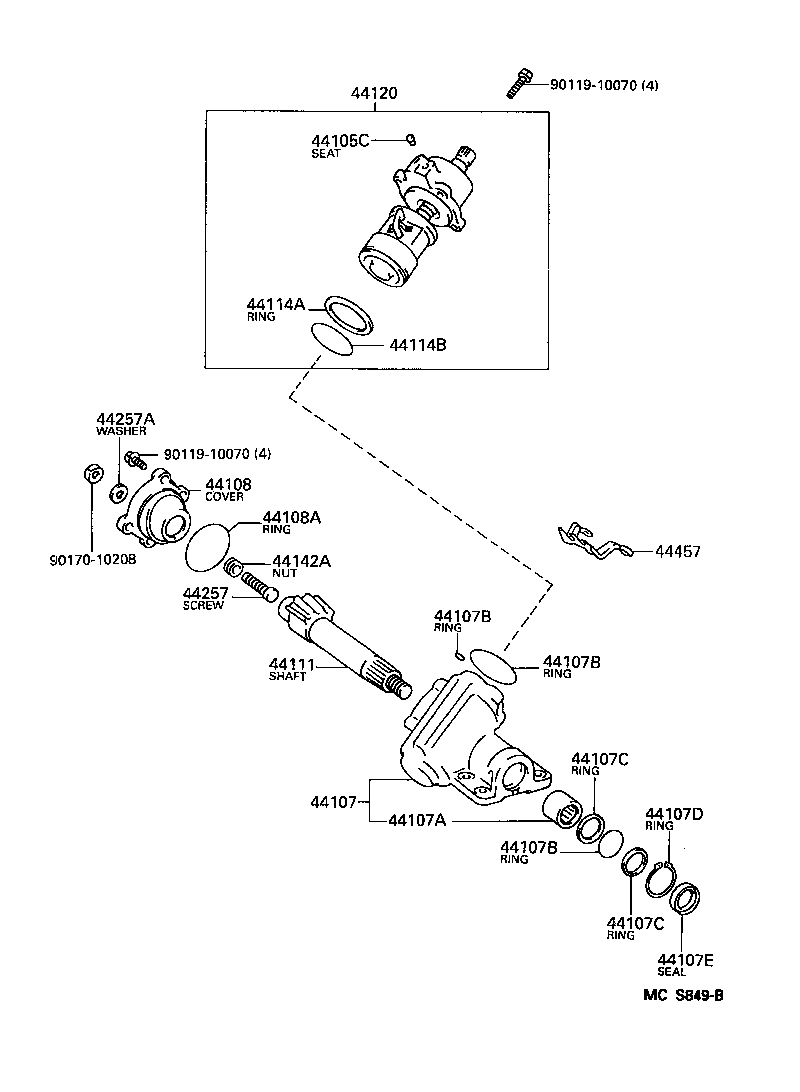

FRONT STEERING GEAR LINK

POWER STEERING ILLUST NO. 2 OF 3(9505- )LY100

DYNA 100 | FRONT STEERING GEAR LINK 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107C - RING(FOR POWER STEERING GEAR HOUSING) 44107C - RING(FOR POWER STEERING GEAR HOUSING) 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) 44108 - COVER SUB-ASSY, SIDE 44108A - RING, O(FOR SIDE COVER) 44111 - SHAFT, CROSS 44114A - RING(FOR POWER PISTON NUT) 44114B - RING, O(FOR POWER PISTON NUT) 44120 - VALVE ASSY, W/BALL NUT 44142A - NUT, LOCK, NO.1 44257 - SCREW, CROSS SHAFT ADJUSTING 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) 44457 - BRACKET, TUBE SUPPORT, NO.1 ** Std Part ** Std Part ** Std Part
