TOYOTA DYNA XZU410-TKFSS3 / TOOL-ENGINE-FUEL / ALTERNATOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

ALTERNATOR

24V 85A (0010- )

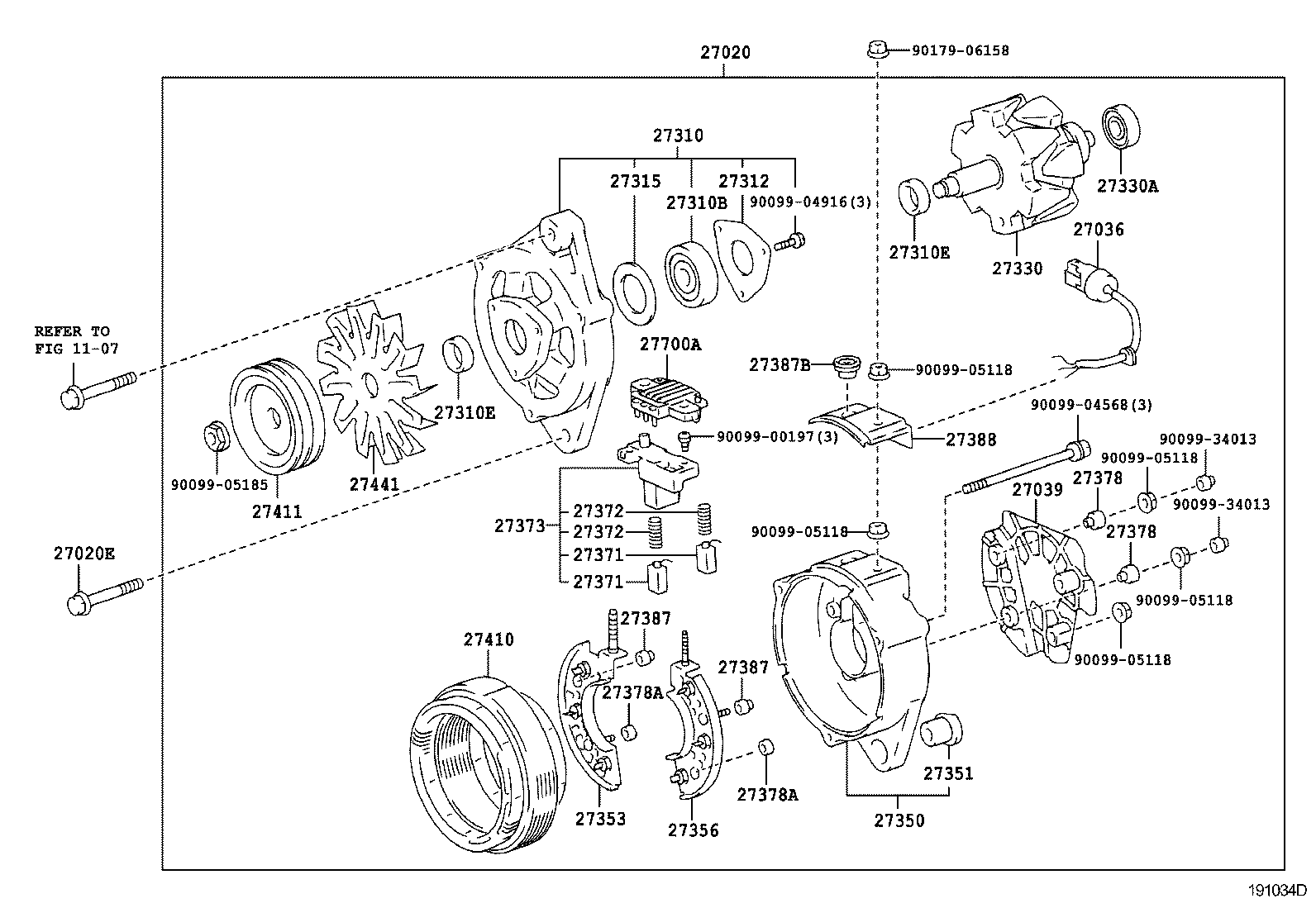

DYNA | ALTERNATOR ** Refer Fig 27020 - ALTERNATOR ASSY 27020E - BOLT(FOR ALTERNATOR) 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR 27039 - COVER, ALTERNATOR REAR END 27310 - FRAME ASSY, DRIVE END, ALTERNATOR 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) 27310E - COLLAR(FOR ALTERNATOR DRIVE END FRAME) 27310E - COLLAR(FOR ALTERNATOR DRIVE END FRAME) 27312 - PLATE, RETAINER 27315 - COVER, ALTERNATOR FELT, INNER NO.1 27330 - ROTOR ASSY, ALTERNATOR 27330A - BEARING(FOR ALTERNATOR ROTOR) 27350 - FRAME ASSY, RECTIFIER END 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR 27371 - BRUSH, ALTERNATOR 27371 - BRUSH, ALTERNATOR 27372 - SPRING, ALTERNATOR BRUSH 27372 - SPRING, ALTERNATOR BRUSH 27373 - HOLDER, ALTERNATOR BRUSH, A 27378 - INSULATOR, ALTERNATOR, NO.1 27378 - INSULATOR, ALTERNATOR, NO.1 27378A - INSULATOR, ALTERNATOR, NO.2 27378A - INSULATOR, ALTERNATOR, NO.2 27387 - INSULATOR, TERMINAL 27387 - INSULATOR, TERMINAL 27387B - INSULATOR, ALTERNATOR TERMINAL 27388 - COVER, ALTERNATOR BRUSH 27410 - STATOR ASSY, ALTERNATOR 27411 - PULLEY, ALTERNATOR 27441 - FAN, ALTERNATOR 27700A - REGULATOR ASSY, GENERATOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
