TOYOTA LAND CRUISER 100 HDJ100R-GNPEZW / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

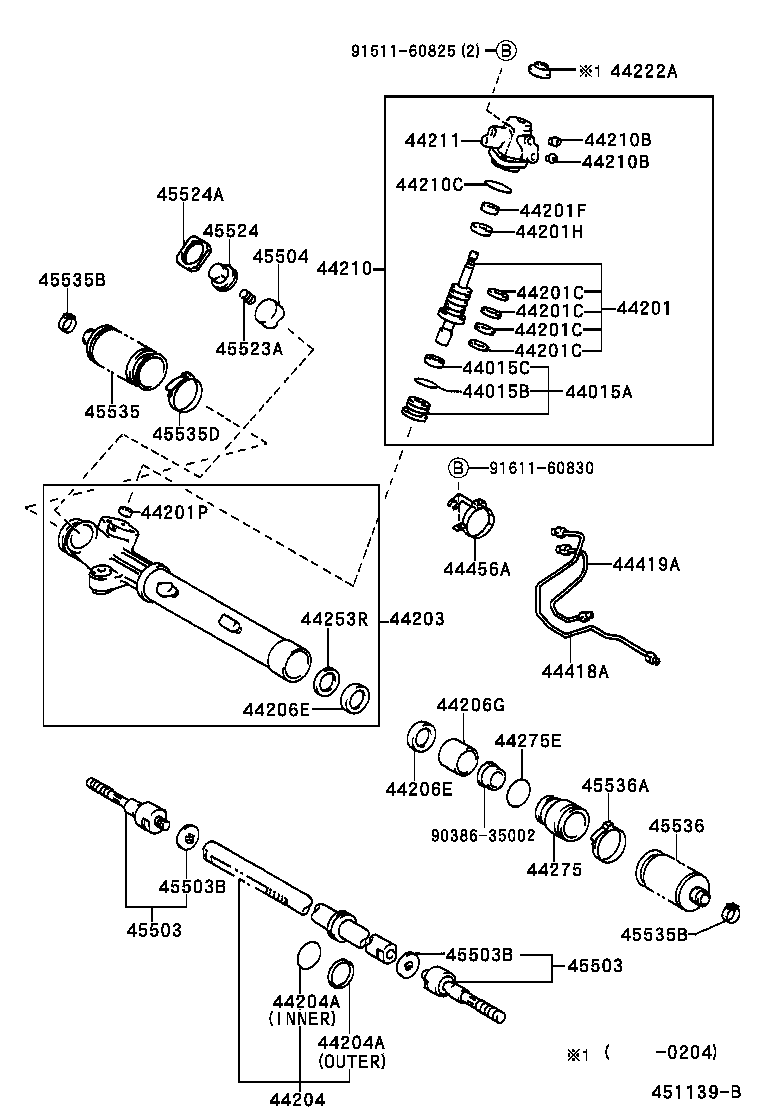

FRONT STEERING GEAR LINK

ILLUST NO. 2 OF 2(9801-0208)RHD

LAND CRUISER 100 | FRONT STEERING GEAR LINK 44015A - NUT SUB-ASSY, BEARING GUIDE 44015B - RING, O(FOR BEARING GUIDE NUT) 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) 44203 - HOUSING SUB-ASSY, POWER STEERING RACK 44204 - RACK SUB-ASSY, POWER STEERING 44204A - RING(FOR RACK STEERING PISTON) 44204A - RING(FOR RACK STEERING PISTON) 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) 44210 - VALVE ASSY, POWER STEERING CONTROL 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) 44211 - HOUSING, CONTROL VALVE 44222A - COVER, DUST(FOR POWER STEERING GEAR) 44253R - SPACER(FOR POWER STEERING RACK HOUSING) 44275 - STOPPER, CYLINDER END 44275E - RING, O(FOR RACK END GUIDE) 44418A - TUBE, STEERING RIGHT TURN PRESSURE 44419A - TUBE, STEERING LEFT TURN PRESSURE 44456A - RETAINER, POWER STEERING TUBE SUPPORT, NO.1 45503 - END SUB-ASSY, STEERING RACK 45503 - END SUB-ASSY, STEERING RACK 45503B - WASHER, CLAW(FOR STEERING RACK END) 45503B - WASHER, CLAW(FOR STEERING RACK END) 45504 - END SUB-ASSY, STEERING RACK, NO.2 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) 45524 - CAP, STEERING RACK GUIDE SPRING 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) 45535 - BOOT, STEERING RACK, NO.1 45535B - CLIP(FOR STEERING RACK BOOT) 45535B - CLIP(FOR STEERING RACK BOOT) 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) 45536 - BOOT, STEERING RACK, NO.2 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) ** Std Part ** Std Part ** Std Part
