TOYOTA MR2 ZZW30L-AKMQHW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

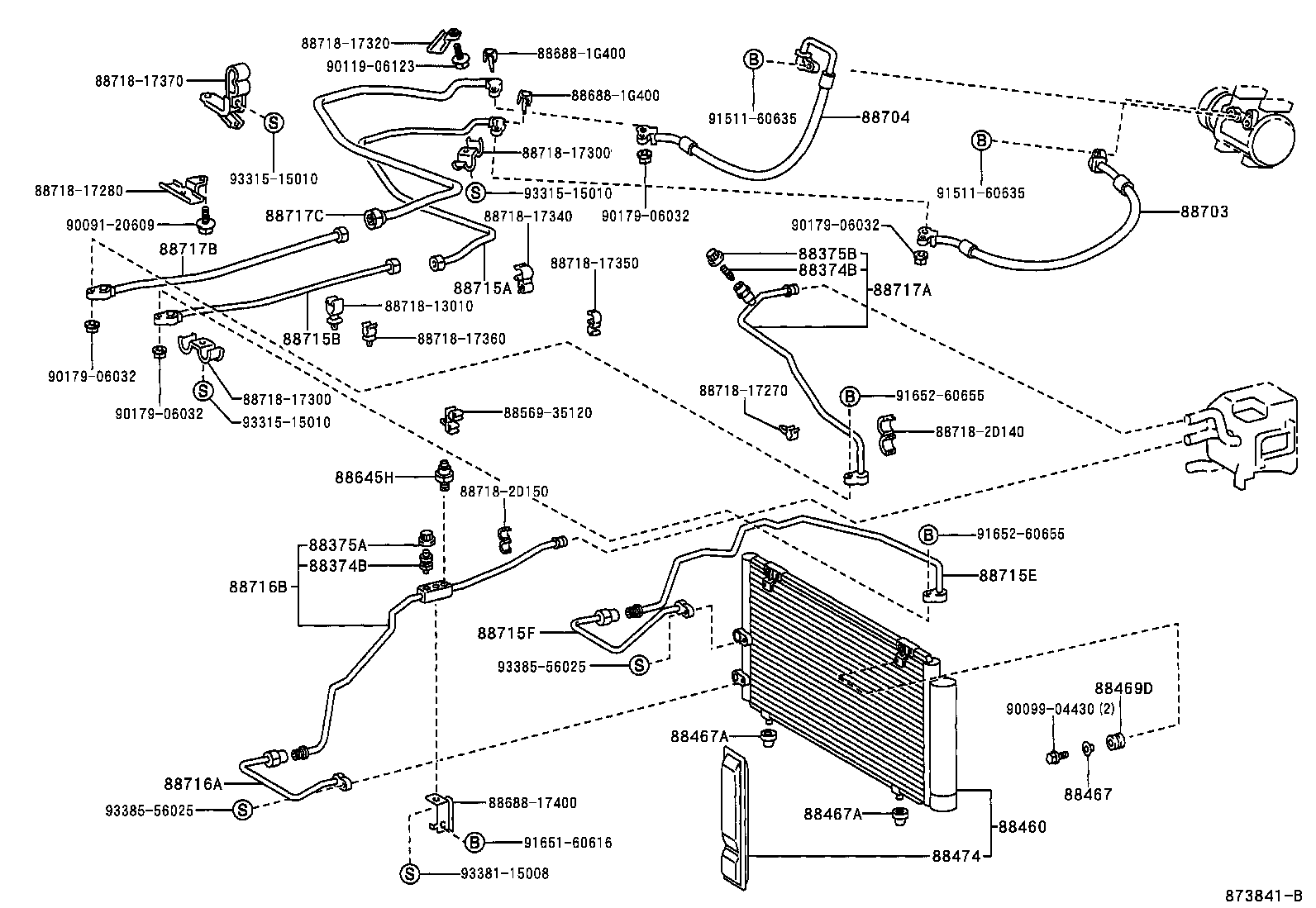

DEALER OPTION ILLUST NO. 1 OF 2(9912-0208)LHD

 MR2 |  HEATING AIR CONDITIONING COOLER PIPING 88374B - VALVE, SERVICE, NO.1 88374B - VALVE, SERVICE, NO.1 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88375B - CAP, SERVICE VALVE, NO.1 88460 - CONDENSER ASSY, COOLER 88467 - CUSHION, COOLER CONDENSER, NO.1 88467A - CUSHION, COOLER CONDENSER, NO.2 88467A - CUSHION, COOLER CONDENSER, NO.2 88469D - COLLAR, CONDENSER BRACKET, NO.1 88474 - DRYER, COOLER  ** Std Part 88645H - SWITCH, PRESSURE NO.1  ** Std Part  ** Std Part  ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B 88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E 88715F - PIPE, COOLER REFRIGERANT DISCHARGE, F 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B 88717C - PIPE, COOLER REFRIGERANT SUCTION, C  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
