TOYOTA PRIUS NHW11L-AEEEBW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

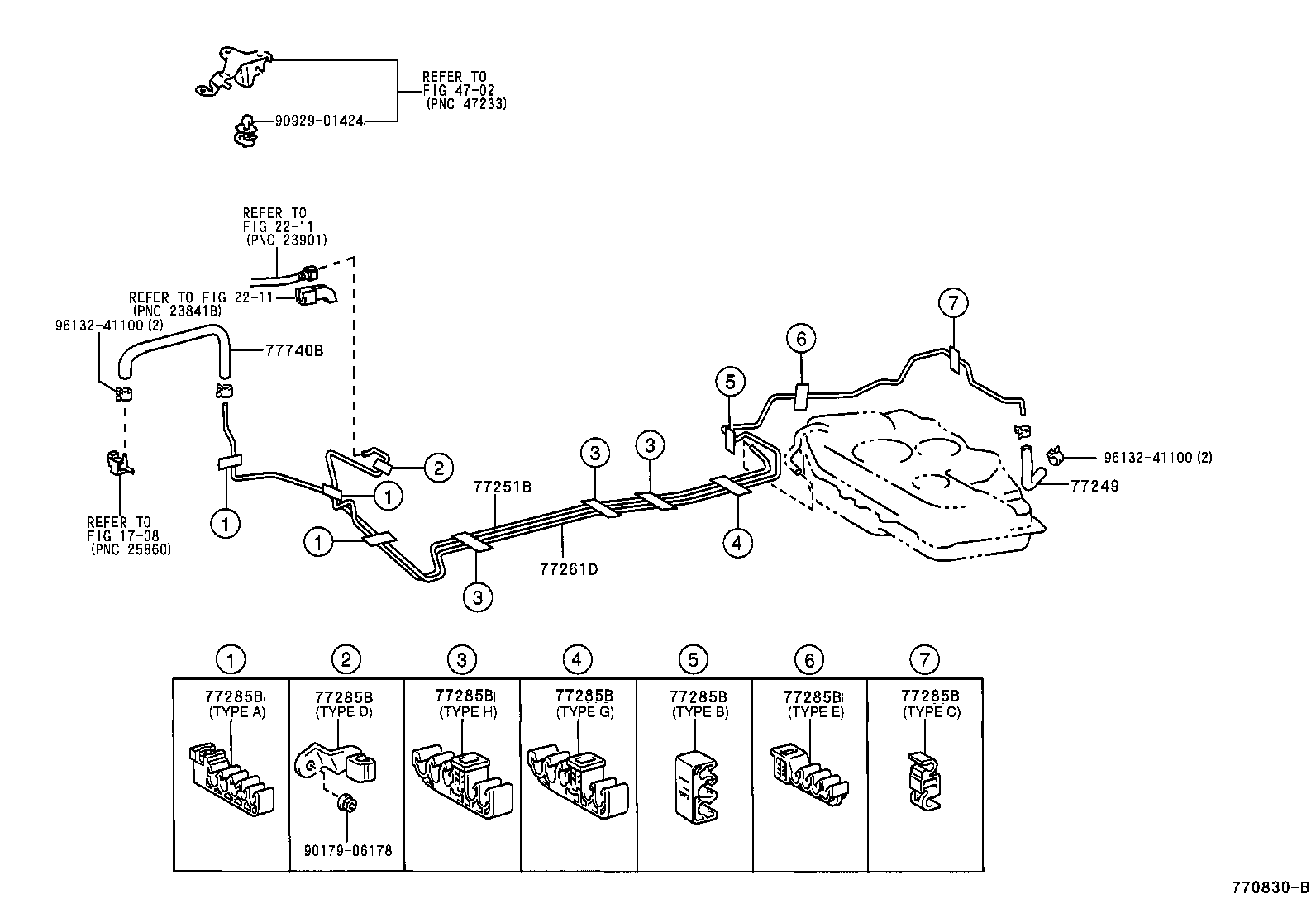

FUEL TANK TUBE

ILLUST NO. 2 OF 2(0005- )LHD

 PRIUS |  FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77249 - HOSE, FUEL EMISSION 77251B - TUBE, FUEL MAIN 77261D - TUBE, FUEL TANK TO CANISTER 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)  ** Std Part  ** Std Part  ** Std Part  ** Std Part
