TOYOTA PRIUS NHW11L-AEEEBW / ELECTRICAL / BATTERY BATTERY CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

BATTERY BATTERY CABLE

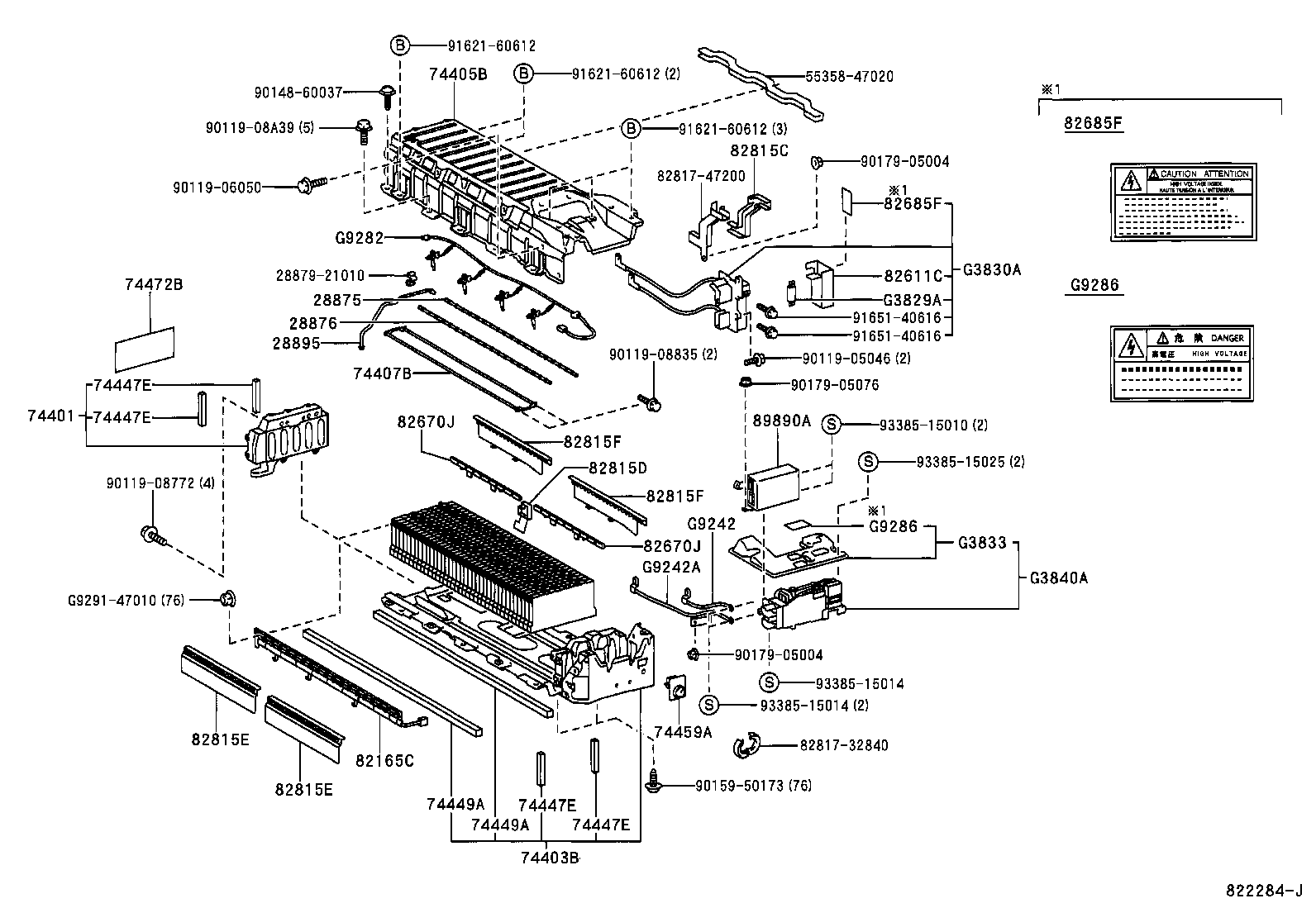

ILLUST NO. 3 OF 4(0005- )

PRIUS | BATTERY BATTERY CABLE 28875 - DUCT, BATTERY INSULATOR, NO.1 28876 - DUCT, BATTERY INSULATOR, NO.2 ** Std Part 28895 - RUBBER, BATTERY INSULATOR ** Std Part 74401 - BRACKET SUB-ASSY, BATTERY, RH 74403B - CARRIER SUB-ASSY, BATTERY 74405B - COVER SUB-ASSY, BATTERY 74407B - BOLT SUB-ASSY, BATTERY CLAMP 74447E - PACKING, BATTERY, NO.1 74447E - PACKING, BATTERY, NO.1 74447E - PACKING, BATTERY, NO.1 74447E - PACKING, BATTERY, NO.1 74449A - PACKING, BATTERY, NO.2 74449A - PACKING, BATTERY, NO.2 74459A - LID, BATTERY COVER, NO.2 74472B - PAD, BATTERY CARRIER 82165C - WIRE, FRAME, NO.2 82611C - COVER, FUSE BLOCK 82670J - BLOCK ASSY, JUNCTION 82670J - BLOCK ASSY, JUNCTION 82685F - MAIN BATTERY CAUTION PLATE, NO.1 82685F - MAIN BATTERY CAUTION PLATE, NO.1 82815C - COVER, WIRING HARNESS PROTECTOR, NO.1 82815D - COVER, WIRING HARNESS PROTECTOR, NO.2 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 ** Std Part ** Std Part 89890A - COMPUTER ASSY, BATTERY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G3829A - FUSE, ELECTRIC VEHICLE G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY G3833 - COVER, ELECTRIC VEHICLE BATTERY FUSE G3840A - RELAY ASSY, HYBRID VEHICLE G9242 - CABLE, MAIN BATTERY G9242A - CABLE, MAIN BATTERY, NO.2 G9282 - THERMISTOR, HYBRID BATTERY G9286 - LABEL, HYBRID BATTERY CAUTION, NO.2 G9286 - LABEL, HYBRID BATTERY CAUTION, NO.2 ** Std Part
