TOYOTA DYNA XZU430-TKFSS3 / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

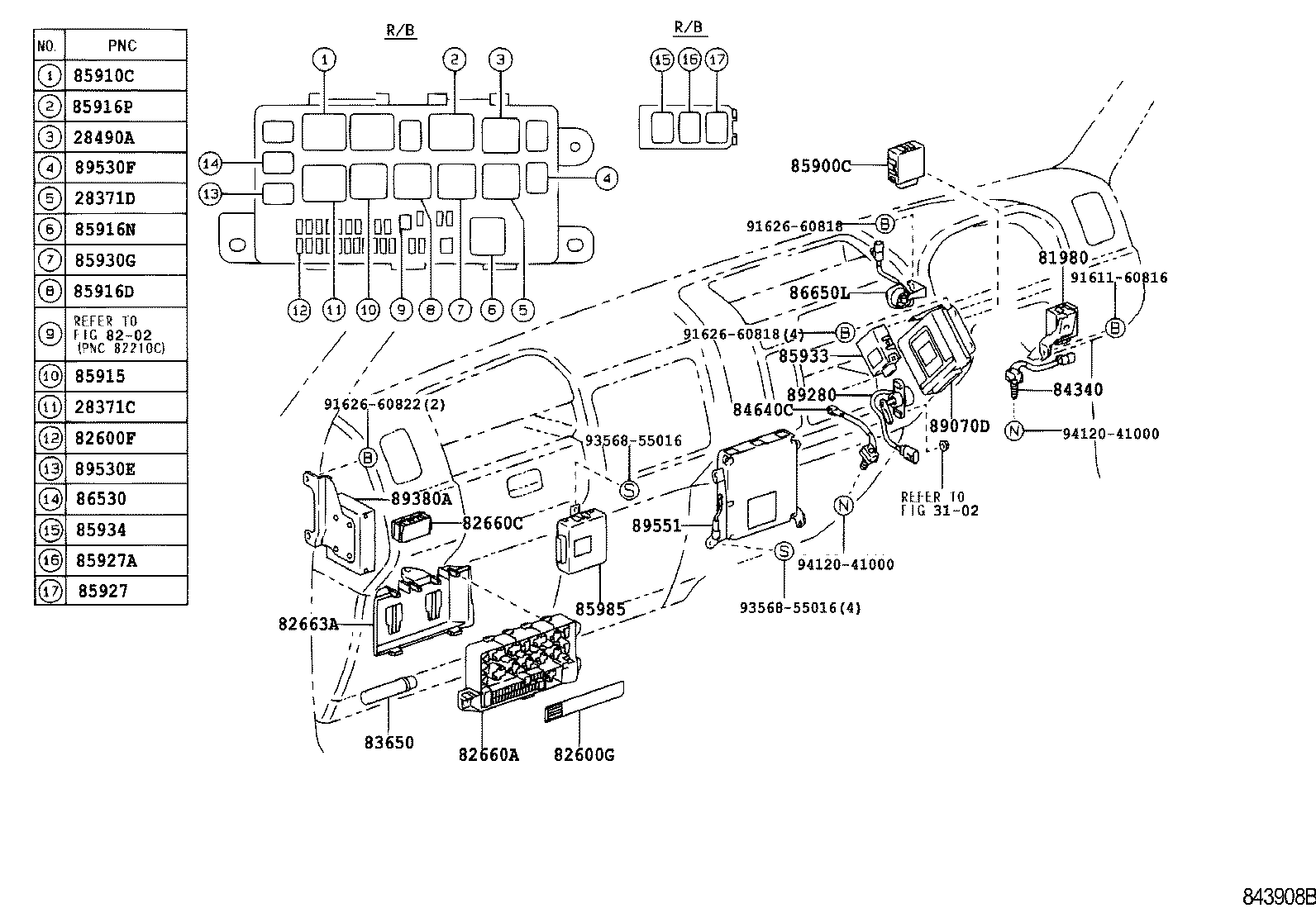

INSTRUMENT PANEL & COWL ILLUST NO. 4 OF 9(0010- )

DYNA | SWITCH RELAY COMPUTER 28371C - RELAY, IGNITION, NO.2 28371D - RELAY, IGNITION, NO.3 28490A - RELAY ASSY, EXHAUST RETARDER ** Refer Fig 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600G - PLATE, CAUTION(FOR FUSE) 82660A - BLOCK ASSY, RELAY, COWL SIDE 82660C - BLOCK ASSY, RELAY 82663A - COVER, RELAY BLOCK, LOWER, NO.2 83650 - FUSEE 84340 - SWITCH ASSY, STOP LAMP 84640C - SWITCH ASSY, EXHAUST RETARDER 85900C - RELAY ASSY, CONTROL UNIT (FOR BRAKE LOCK) 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85915 - RELAY, MAIN 85916D - RELAY, FOG LAMP 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85930G - RELAY, ACC 85933 - COMPUTER, SHIFT LOCK CONTROL 85934 - RELAY, MAGNET-CLUTCH 85985 - RELAY, KEY REMINDER 86530 - RELAY ASSY, HORN 86650L - BUZZER ASSY, VACUUM WARNING 89070D - COMPUTER ASSY, TRANSMISSION CONTROL 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE 89380A - COMPUTER ASSY, ES START 89530E - RELAY, ATM BACK LAMP 89530F - RELAY, ATM P RANGE 89551 - COMPUTER, EMISSION CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
