TOYOTA RAV4 CLA21R-AWMNYW / POWERTRAIN-CHASSIS / REAR AXLE SHAFT HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

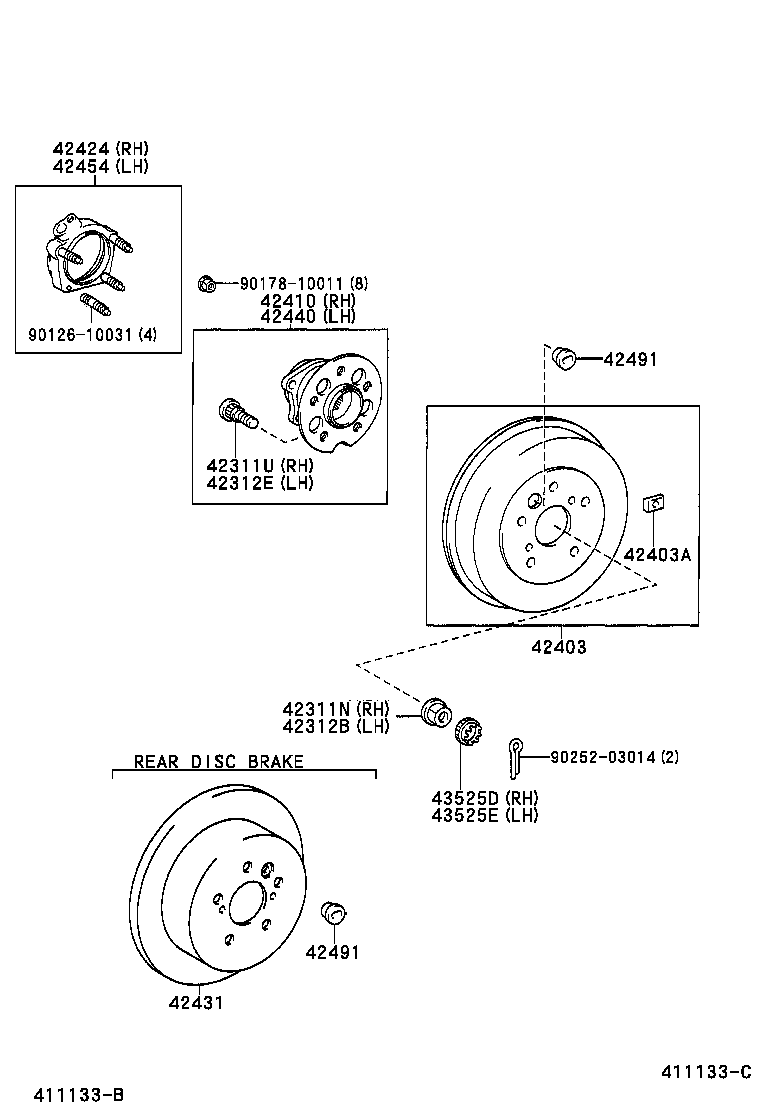

REAR AXLE SHAFT HUB

ILLUST NO. 2 OF 2(0005- )ACA2#,CLA2#

 RAV4 |  REAR AXLE SHAFT HUB 42311N - NUT (FOR REAR AXLE SHAFT RH) 42311U - BOLT, HUB (FOR REAR AXLE RH) 42312B - NUT (FOR REAR AXLE SHAFT LH) 42312E - BOLT, HUB (FOR REAR AXLE LH) 42403 - DRUM SUB-ASSY, REAR BRAKE 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) 42410 - HUB & BEARING ASSY, REAR AXLE, RH 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH 42431 - DISC, REAR 42440 - HUB & BEARING ASSY, REAR AXLE, LH 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) 43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH 43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH  ** Std Part  ** Std Part  ** Std Part
