TOYOTA DYNA XZU410-TKFSS3 / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

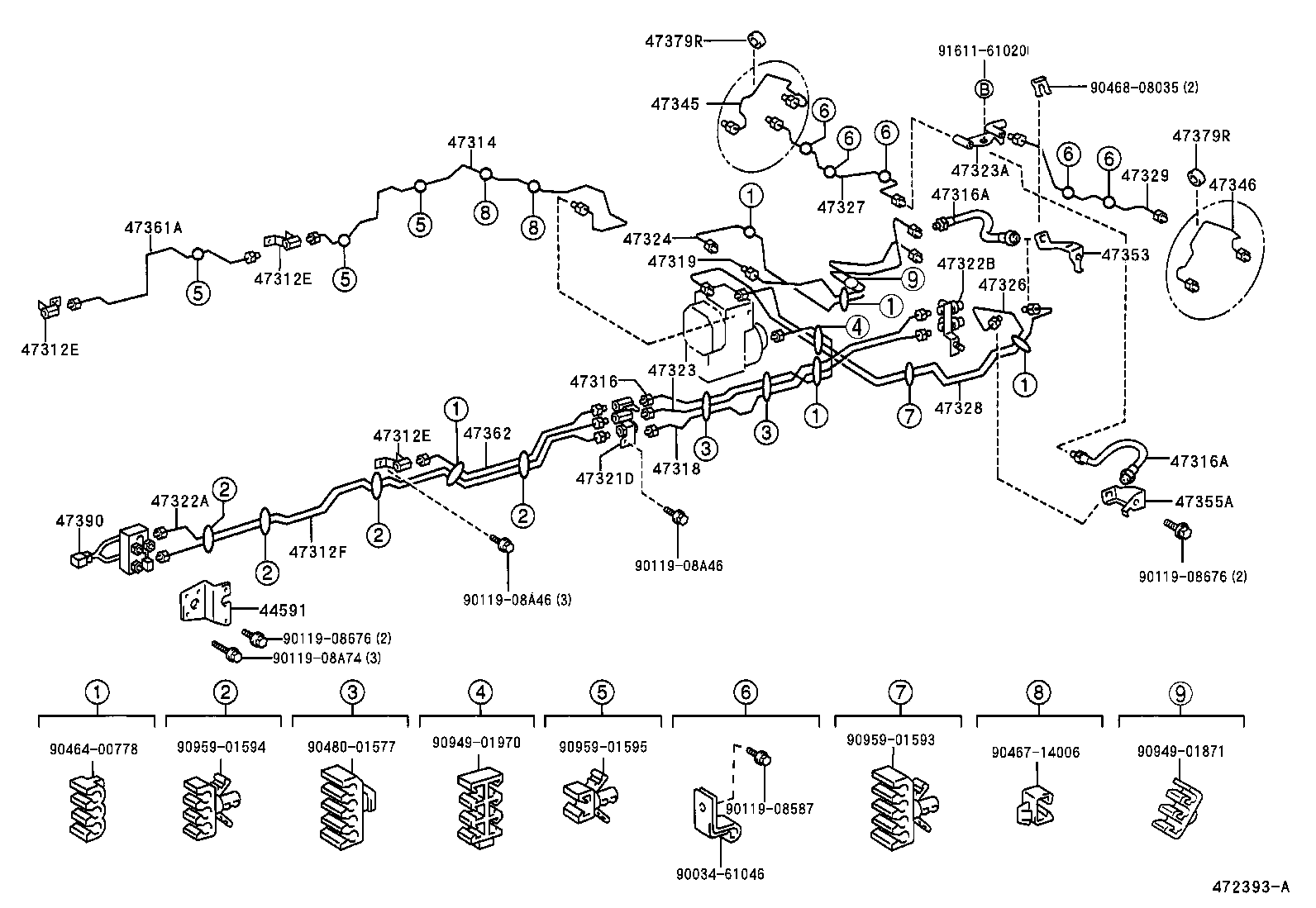

BRAKE TUBE CLAMP

W(BRAKE LOCK SYSTEM) & W/O(LSPV) ILLUST NO. 2 OF 4(0010- )XZU410

DYNA | BRAKE TUBE CLAMP 44591 - BRACKET, BRAKE ACTUATOR, NO.1 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 47314 - TUBE, FRONT BRAKE, NO.4 47316 - TUBE, FRONT BRAKE, NO.6 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47318 - TUBE, FRONT BRAKE, NO.8 47319 - TUBE, FRONT BRAKE, NO.9 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) 47322A - TUBE, REAR BRAKE, FRAME NO.2 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) 47323 - TUBE, REAR BRAKE, NO.3 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) 47324 - TUBE, REAR BRAKE, NO.4 47326 - TUBE, REAR BRAKE, NO.6 47327 - TUBE, REAR BRAKE, NO.7 47328 - TUBE, REAR BRAKE, NO.8 47329 - TUBE, REAR BRAKE, NO.9 47345 - TUBE, WHEEL CYLINDER, REAR RH 47346 - TUBE, WHEEL CYLINDER, REAR LH 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) 47355A - BRACKET, FLEXIBLE HOSE, NO.5 47361A - TUBE, FRONT BRAKE, NO.10 47362 - TUBE, FRONT BRAKE, NO.11 47379R - DMPER, TUBE(FOR REAR) 47379R - DMPER, TUBE(FOR REAR) 47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
