TOYOTA HIACE VAN COMUTER LH112L-RBMRS / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

AIR CLEANER

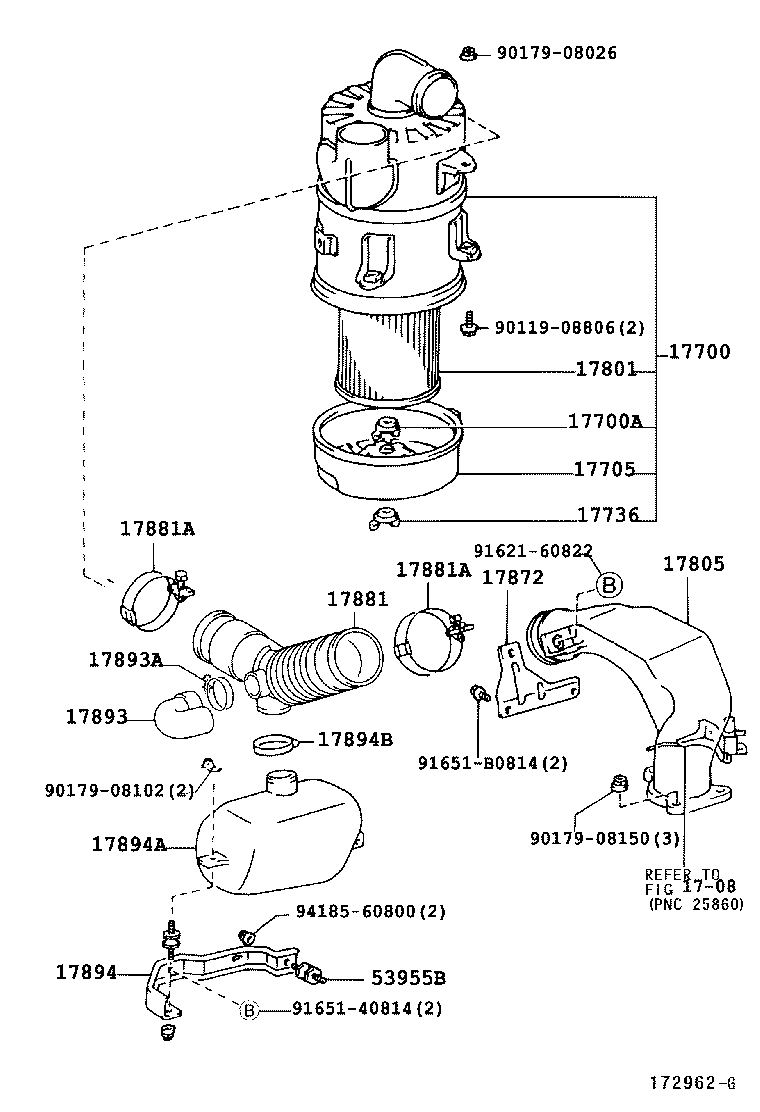

TURKEY SPEC ILLUST NO. 1 OF 2(0108-0208)2L..LH112..LHD

HIACE VAN COMUTER | AIR CLEANER ** Refer Fig 17700 - CLEANER ASSY, AIR 17700A - NUT, WING(FOR AIR CLEANER) 17705 - CAP SUB-ASSY, AIR CLEANER 17736 - NUT, AIR CLEANER CASE 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17805 - CONNECTOR SUB-ASSY, INTAKE AIR 17872 - BRACKET, INTAKE AIR CONNECTOR 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17893 - RESONATOR, INTAKE AIR 17893A - CLAMP, HOSE 17894 - BRACKET, RESONATOR 17894A - RESONATOR, INTAKE AIR, NO.2 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) 53955B - CUSHION, AIR CLEANER INLET, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
