TOYOTA LAND CRUISER 100 UZJ100L-GNAEKA / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING WATER PIPING

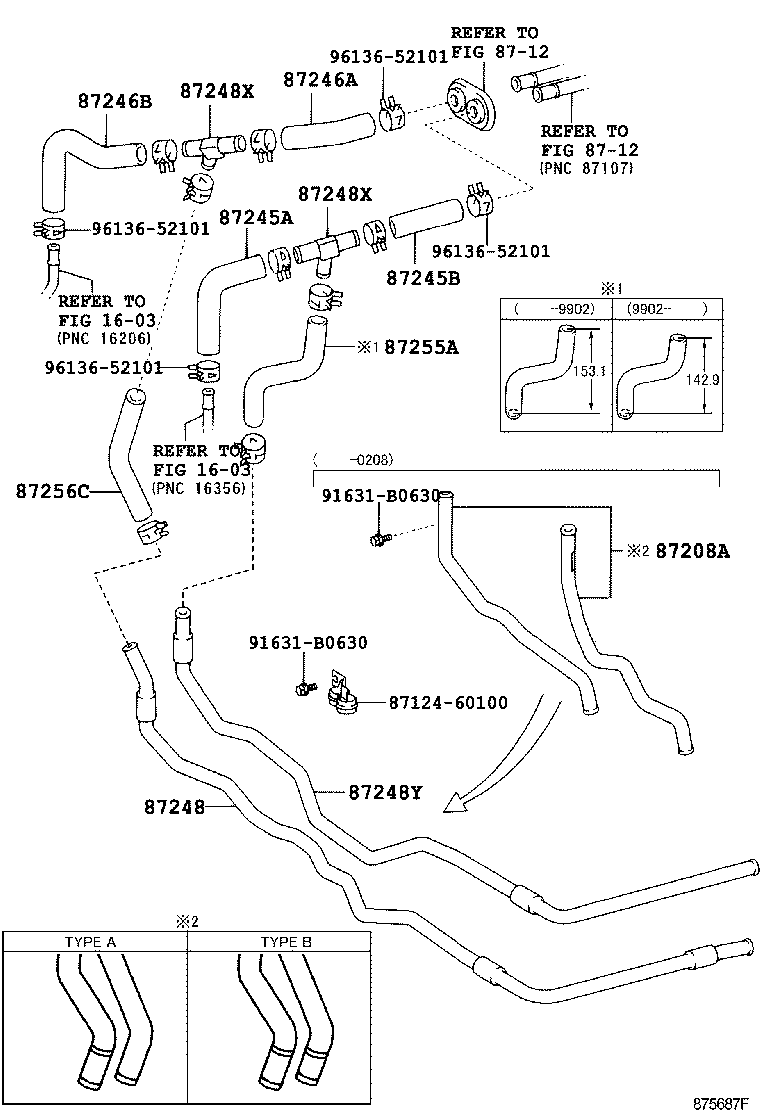

FRONT,W(REAR HEATER) ILLUST NO. 1 OF 2(9801- )

 LAND CRUISER 100 |  HEATING AIR CONDITIONING WATER PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part 87208A - PIPE SUB-ASSY, HEATER WATER, A 87245A - HOSE, HEATER WATER, INLET A 87245B - HOSE, HEATER WATER, INLET B 87246A - HOSE, HEATER WATER, OUTLET A 87246B - HOSE, HEATER WATER, OUTLET B 87248 - PIPE SUB-ASSY, WATER 87248X - PIPE, HEATER WATER 87248X - PIPE, HEATER WATER 87248Y - PIPE, HEATER WATER, NO.2 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) 87256C - HOSE, REAR HEATER WATER OUTLET, C  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
