TOYOTA YARIS JPP NLP10L-AGMRXW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

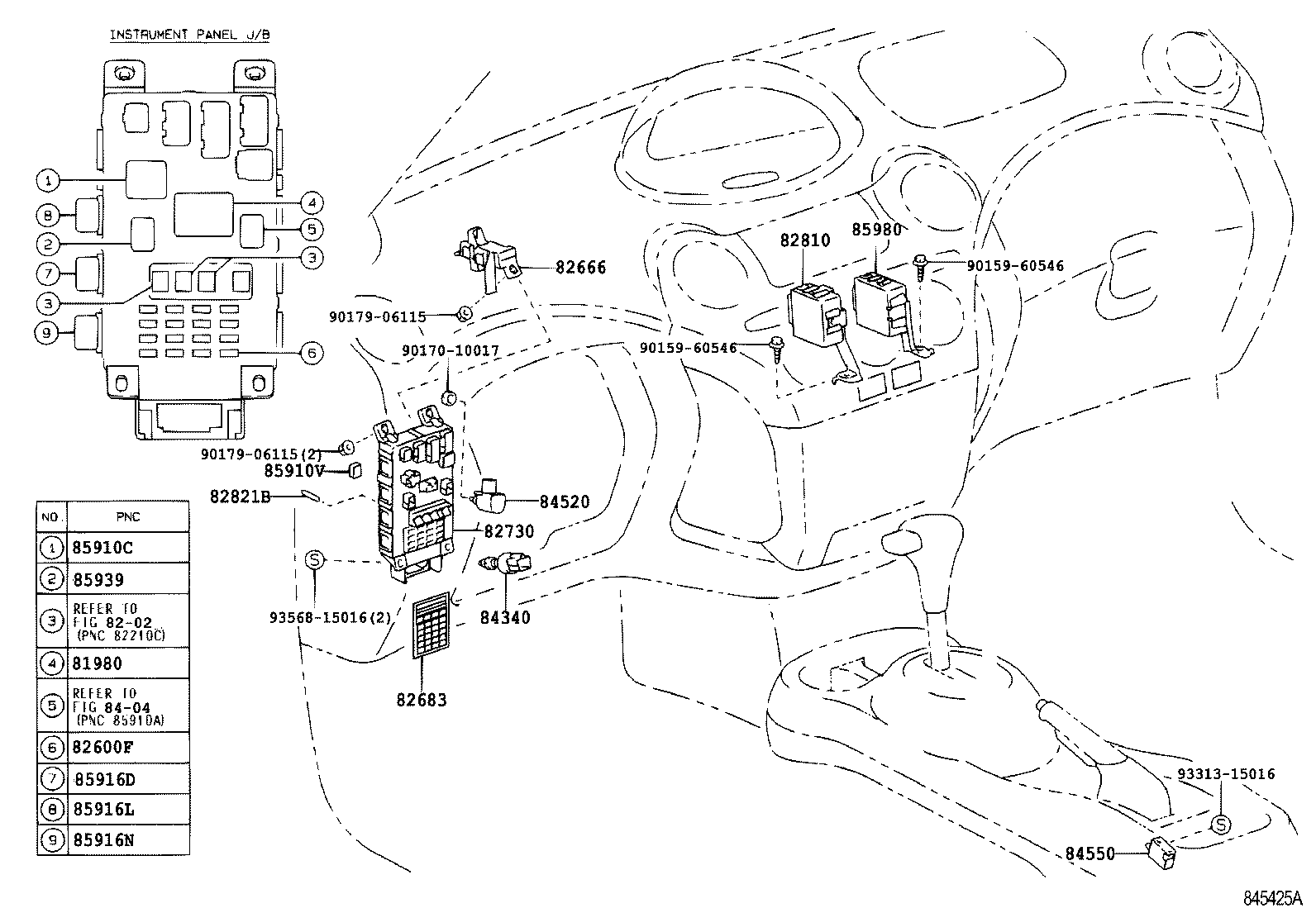

COWL ILLUST NO. 3 OF 6(0212- )JPP..LHD

YARIS JPP | SWITCH RELAY COMPUTER 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig 82600F - FUSE, FUSE BLOCK 82666 - HOLDER, CONNECTOR 82683 - PLATE, FUSE BLOCK CAUTION 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 82810 - RELAY ASSY, RUNNING LIGHT 82821B - COVER, CONNECTOR ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 84520 - SWITCH ASSY, CLUTCH START 84550 - SWITCH ASSY, PARKING BRAKE 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910V - RELAY, SEAT HEATER 85916D - RELAY, FOG LAMP 85916L - RELAY, REAR FOG LAMP 85916N - RELAY, TAIL LAMP 85939 - RELAY, POWER WINDOW 85980 - RELAY ASSY, DOOR CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
