TOYOTA RAV4 ACA33R-ANPXKQ / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SEAT SEAT TRACK

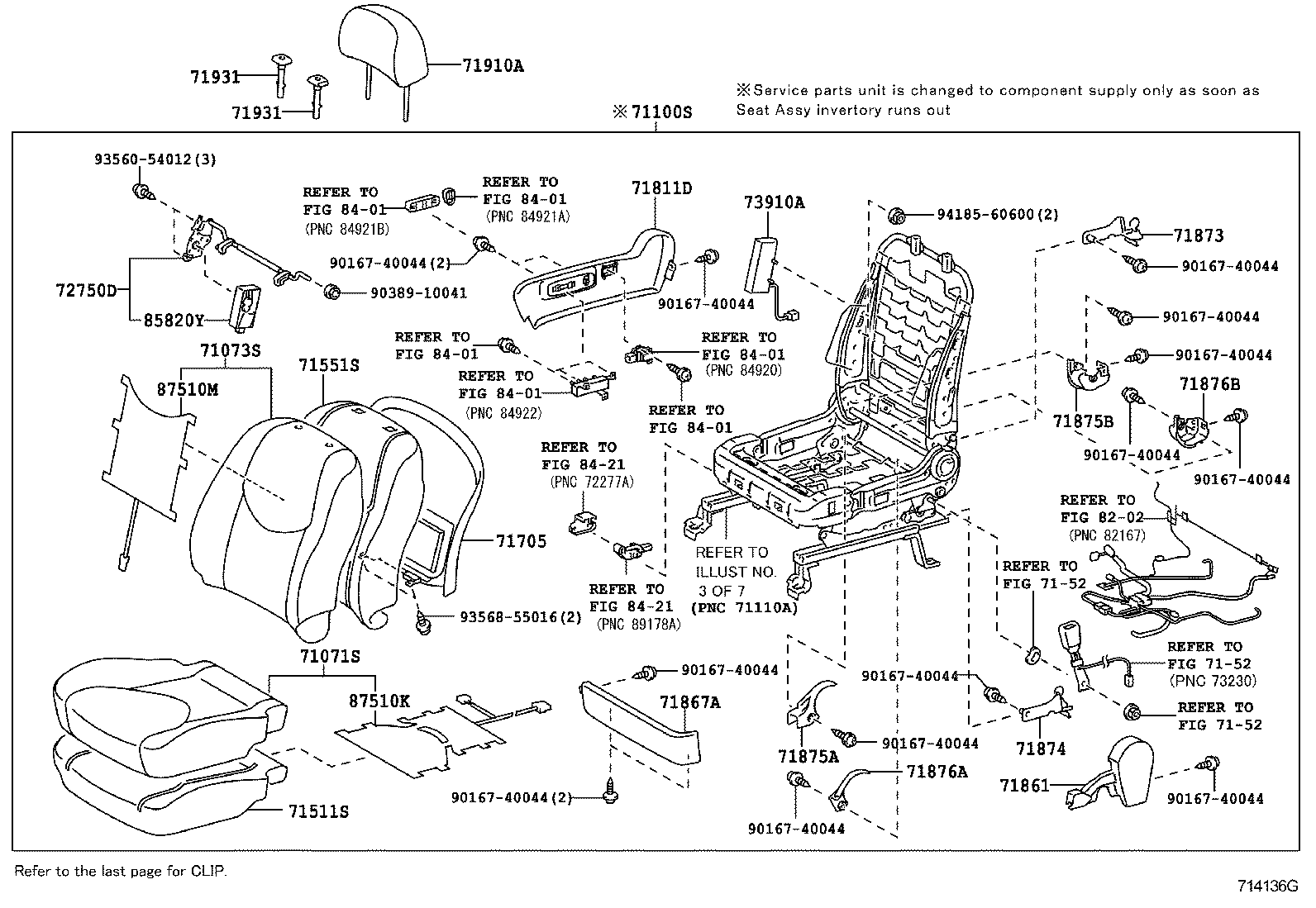

DRIVER-W(POWER SEAT & SIDE AIR BAG)ILLUST NO. 1 OF 7(0511-0808)ARL ; (0511-0812)ACA30,ALA30..RHD

RAV4 | SEAT SEAT TRACK 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71100S - SEAT ASSY, FRONT RH 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig ** Refer Fig 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71811D - SHIELD, FRONT SEAT CUSHION, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH 73910A - AIR BAG ASSY, FRONT SEAT, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85820Y - MOTOR ASSY, POWER SEAT 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH 87510M - HEATER ASSY, FRONT SEAT BACK, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
