TOYOTA RAV4 CLA20L-AZMNYW / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

CLUTCH PEDAL FLEXIBLE HOSE

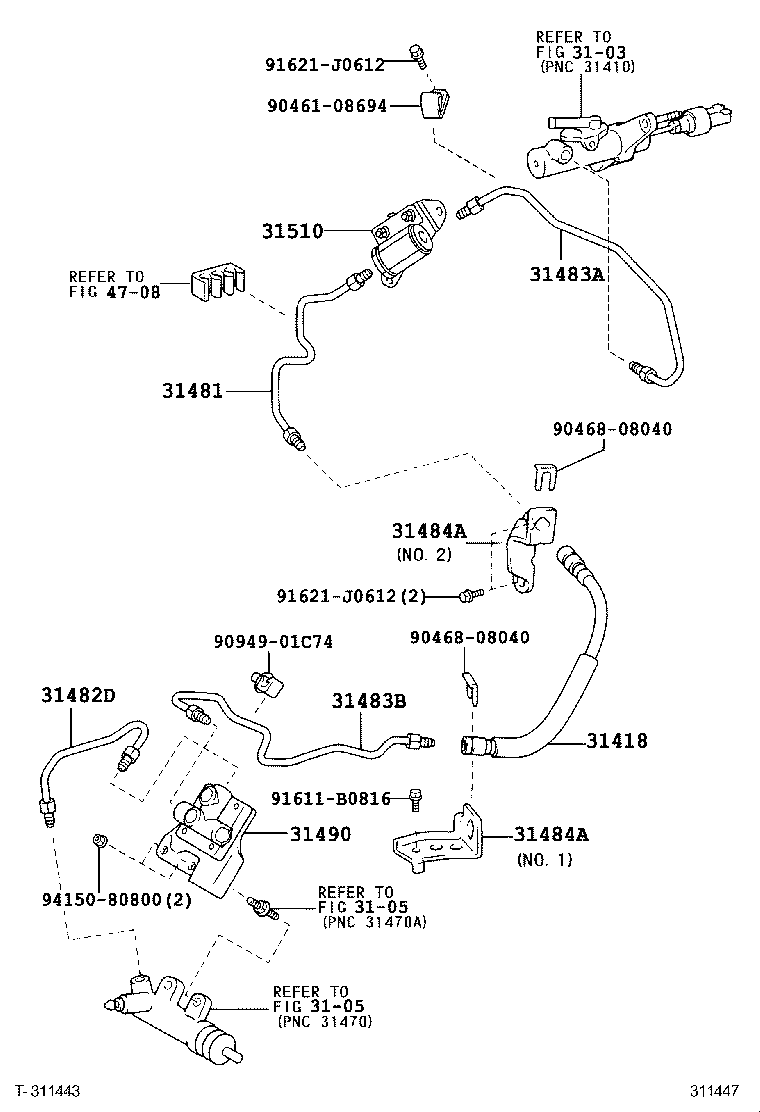

ILLUST NO. 2 OF 2(0408- )CLA2#..LHD

RAV4 | CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig ** Refer Fig 31418 - HOSE, CLUTCH 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR 31483A - TUBE, CLUTCH MASTER CYLINDER TO ORIFICE 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) 31490 - ACCUMULATOR ASSY, CLUTCH 31510 - ORIFICE ASSY, CLUTCH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
