TOYOTA LAND CRUISER 120 KDJ120R-GKAEYW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COOLER PIPING

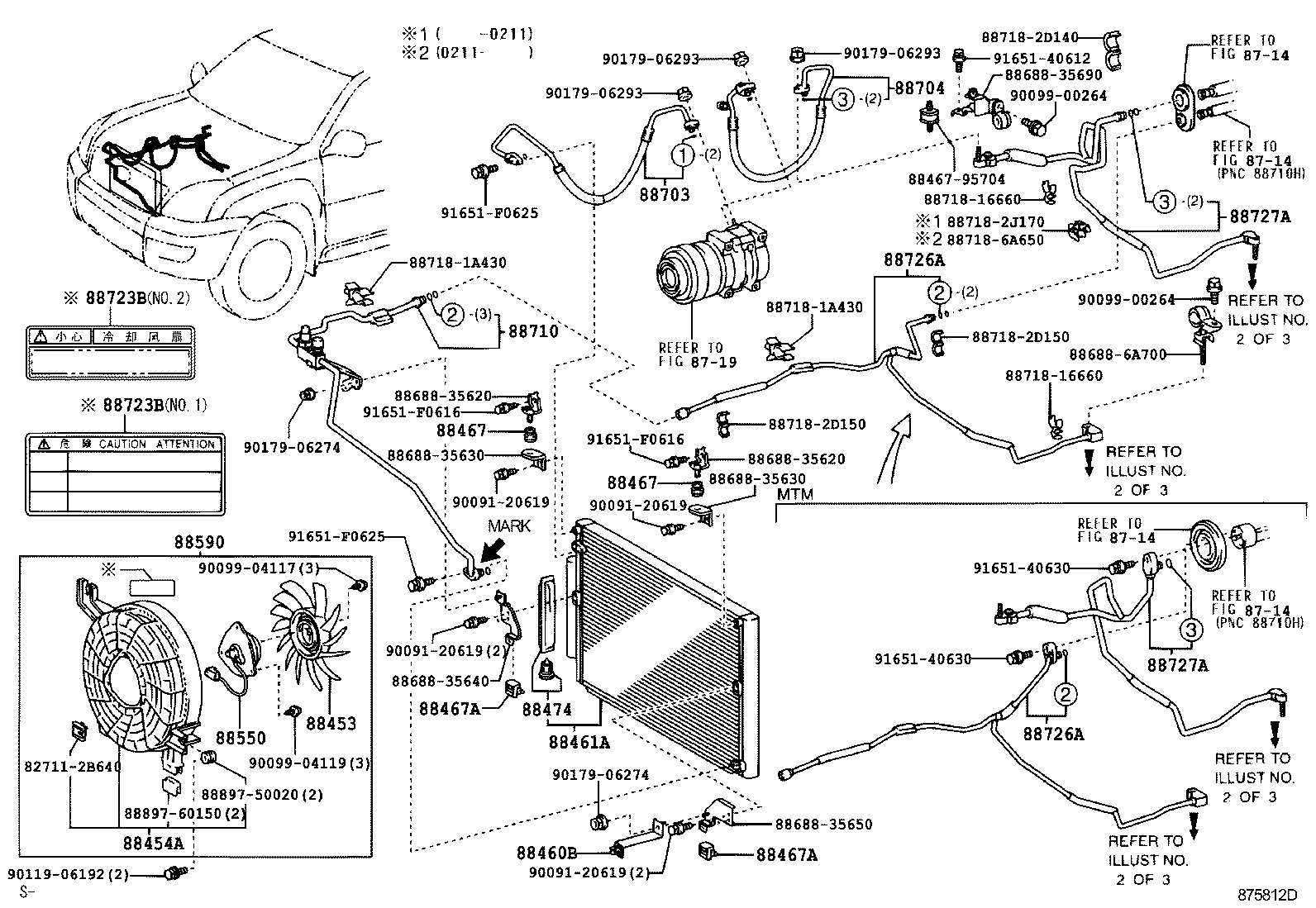

FRONT-DUAL AIR CONDITIONER ILLUST NO. 1 OF 3(0209- )KDJ12#

LAND CRUISER 120 | HEATING AIR CONDITIONING COOLER PIPING ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 88453 - FAN, COOLING (FOR CONDENSER) 88454A - SHROUD, FAN 88460B - BRACKET, COOLER CONDENSER, NO.1 88461A - CORE, COOLER CONDENSER 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 ** Std Part 88467A - CUSHION, COOLER CONDENSER, NO.2 88467A - CUSHION, COOLER CONDENSER, NO.2 88474 - DRYER, COOLER 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88590 - BLOWER ASSY, W/SHROUD ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88710 - TUBE ASSY, AIRCONDITIONER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION 88723B - LABEL, COOLER SERVICE CAUTION 88726A - PIPE, COOLER REFRIGERANT LIQUID, A 88726A - PIPE, COOLER REFRIGERANT LIQUID, A 88727A - PIPE, COOLER REFRIGERANT SUCTION, A 88727A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
