TOYOTA LAND CRUISER 120 KDJ120R-GKAEYW / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

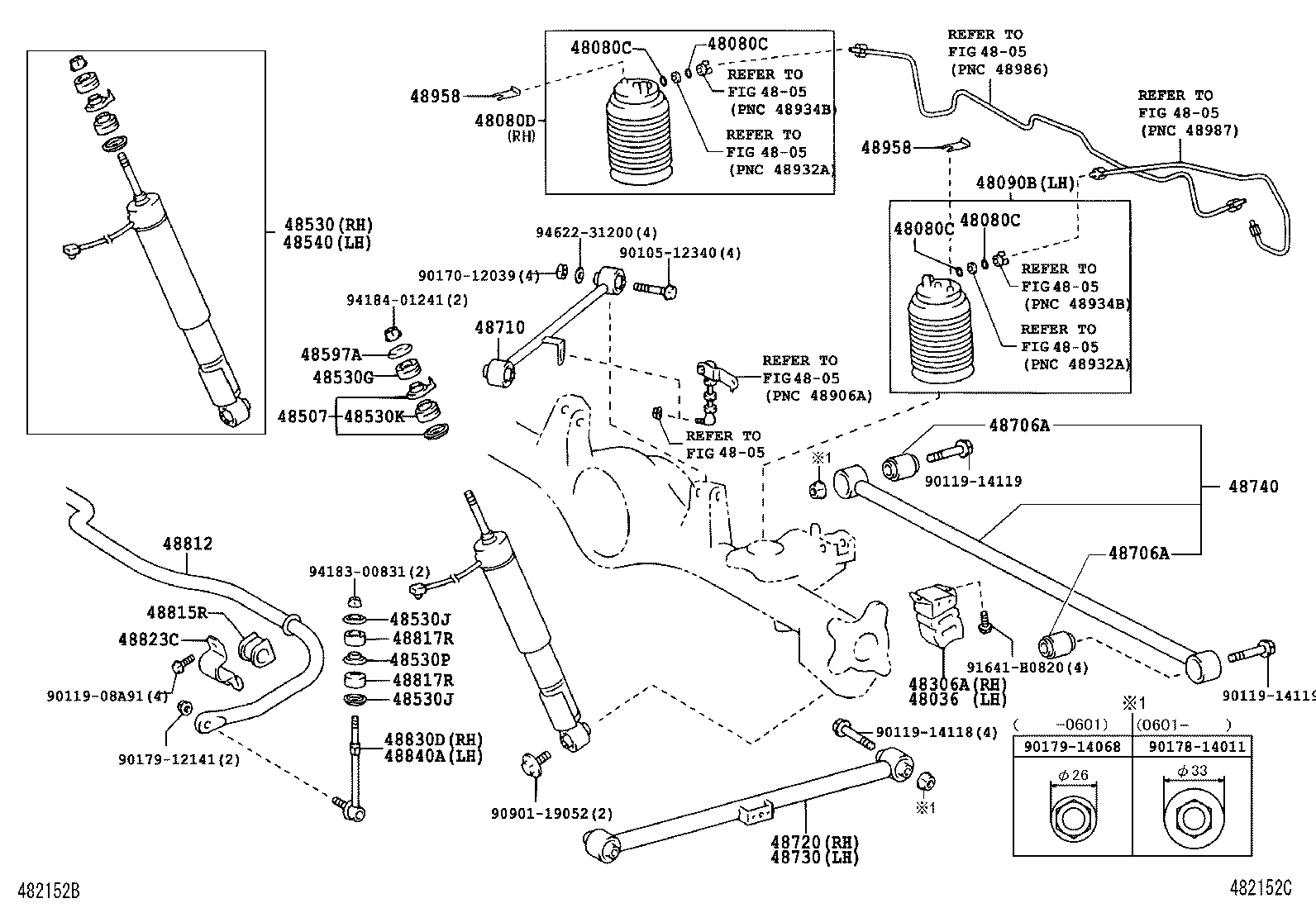

REAR SPRING SHOCK ABSORBER

W(TEMS) OR W(AIR SUSPENSION) (0209- )GRJ120,KDJ120

LAND CRUISER 120 | REAR SPRING SHOCK ABSORBER 48036 - BUMPER SUB-ASSY, REAR SPRING, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) 48080D - CYLINDER ASSY, PNEUMATIC, REAR RH 48090B - CYLINDER ASSY, PNEUMATIC, REAR LH 48306A - BUMPER SUB-ASSY, REAR SPRING, RH 48507 - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LWR 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) 48540 - ABSORBER ASSY, SHOCK, REAR LH 48597A - RETAINER, REAR SHOCK ABSOBER CUSHION 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD 48710 - ARM ASSY, UPPER CONTROL 48720 - ARM ASSY, LOWER CONTROL, RH 48730 - ARM ASSY, LOWER CONTROL, LH 48740 - ROD ASSY, REAR LATERAL CONTROL 48812 - BAR, STABILIZER, REAR 48815R - BUSH, STABILIZER(FOR REAR) 48817R - CUSHION, STABILIZER(FOR REAR) 48817R - CUSHION, STABILIZER(FOR REAR) 48823C - COVER, REAR STABILIZER BRACKET 48830D - LINK ASSY, REAR STABILIZER, RH 48840A - LINK ASSY, REAR STABILIZER, LH 48958 - CLIP, PNEUMATIC CYLINDER 48958 - CLIP, PNEUMATIC CYLINDER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
