TOYOTA LAND CRUISER 200 202 VDJ200L-GMTEZW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

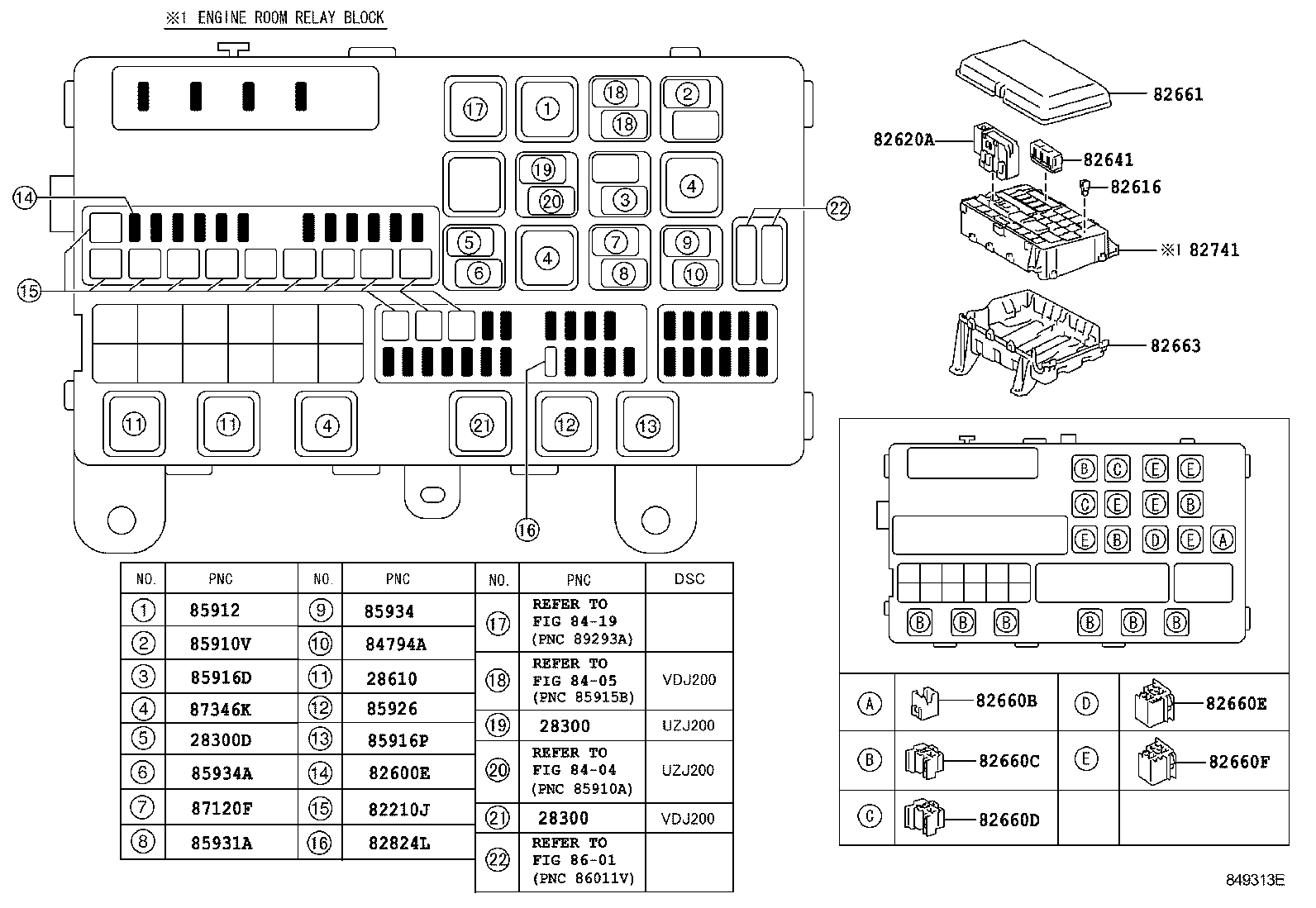

ENGINE ROOM RELAY BLOCK ILLUST NO. 3 OF 9(0709-1201)

LAND CRUISER 200 202 | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28300 - RELAY ASSY, STARTER 28300D - RELAY, STARTER CUT 28610 - RELAY ASSY, GLOW PLUG 82210J - FUSIBLE LINK 82600E - ENGINE ROOM FUSE 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82641 - RELAY, INTEGRATION NO.1 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82660D - BLOCK ASSY, RELAY 82660E - BLOCK ASSY, RELAY 82660F - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82663 - COVER, RELAY BLOCK, LOWER 82741 - BLOCK, ENGINE ROOM RELAY 82824L - PIN, SHORT ** Refer Fig ** Refer Fig ** Refer Fig 84794A - RELAY, FR WIPER DEICER 85910V - RELAY, SEAT HEATER 85912 - RELAY, DEFOGGER 85916D - RELAY, FOG LAMP 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85931A - RELAY BRAKE LAMP 85934 - RELAY, MAGNET-CLUTCH 85934A - RELAY CONDENSER FAN ** Refer Fig 87120F - RELAY, VISCOUS HEATER 87346K - RELAY, PTC HEATER
