TOYOTA YARIS JPP ZSP90R-AHMVKW / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COOLER UNIT

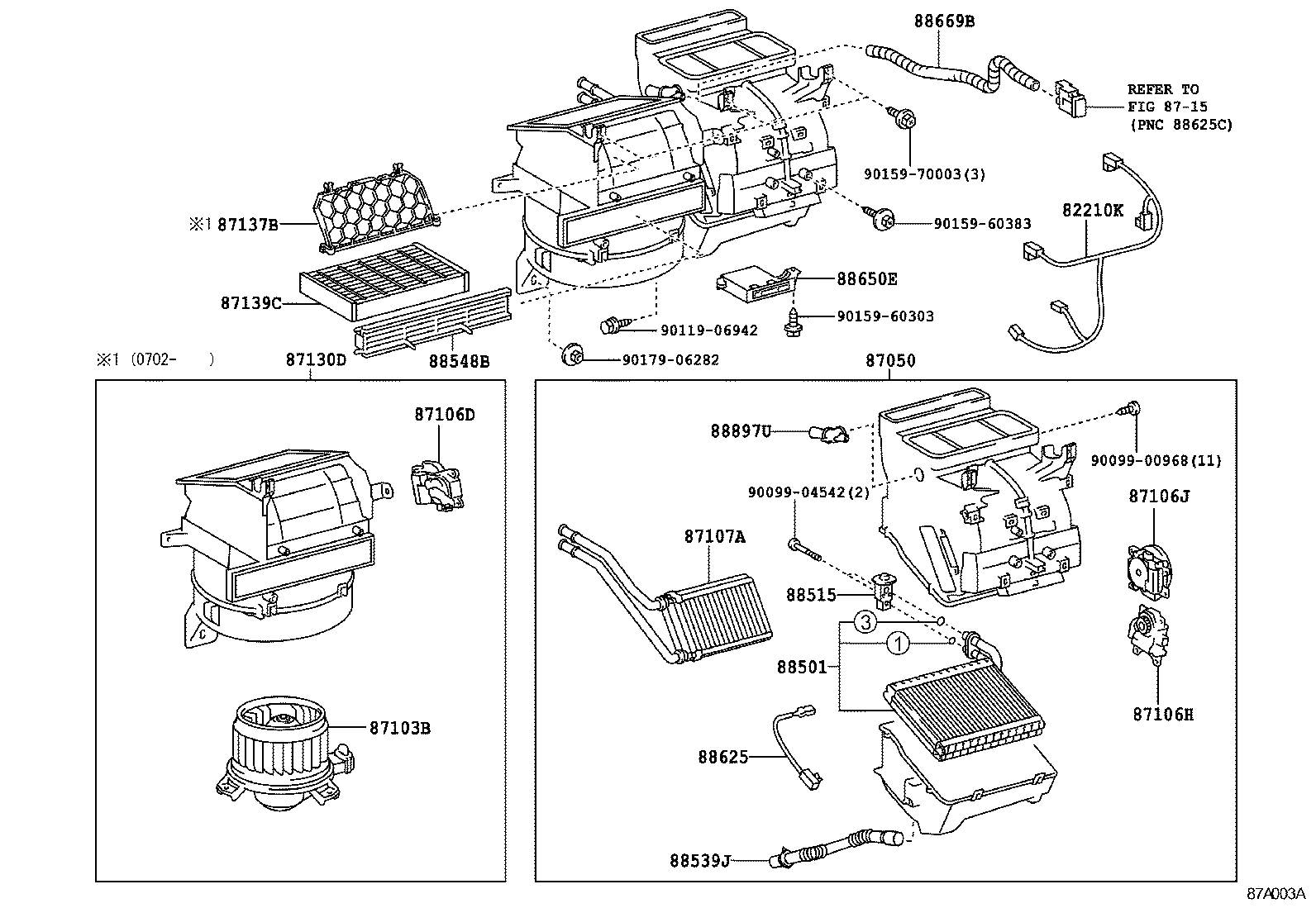

AUTO AIR CONDITIONER ILLUST NO. 1 OF 2(0508- )JPP..RHD..SOL,TS

YARIS JPP | HEATING AIR CONDITIONING COOLER UNIT 82210K - HARNESS ASSY, AIR CONDITIONER 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106D - SERVO SUB-ASSY, DAMPER, NO.1 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87130D - BLOWER ASSY 87137B - COVER, HEATER BLOWER 87139C - FILTER, CLEAN AIR ** Refer Fig 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539J - HOSE, DRAIN COOLER 88548B - CASE, AIR FILTER 88625 - THERMISTOR, COOLER, NO.1 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 88669B - HOSE, COOLER AIR 88897U - PIPE, ASPIRATOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
