TOYOTA VERSO AUR21R-GRFEXW / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

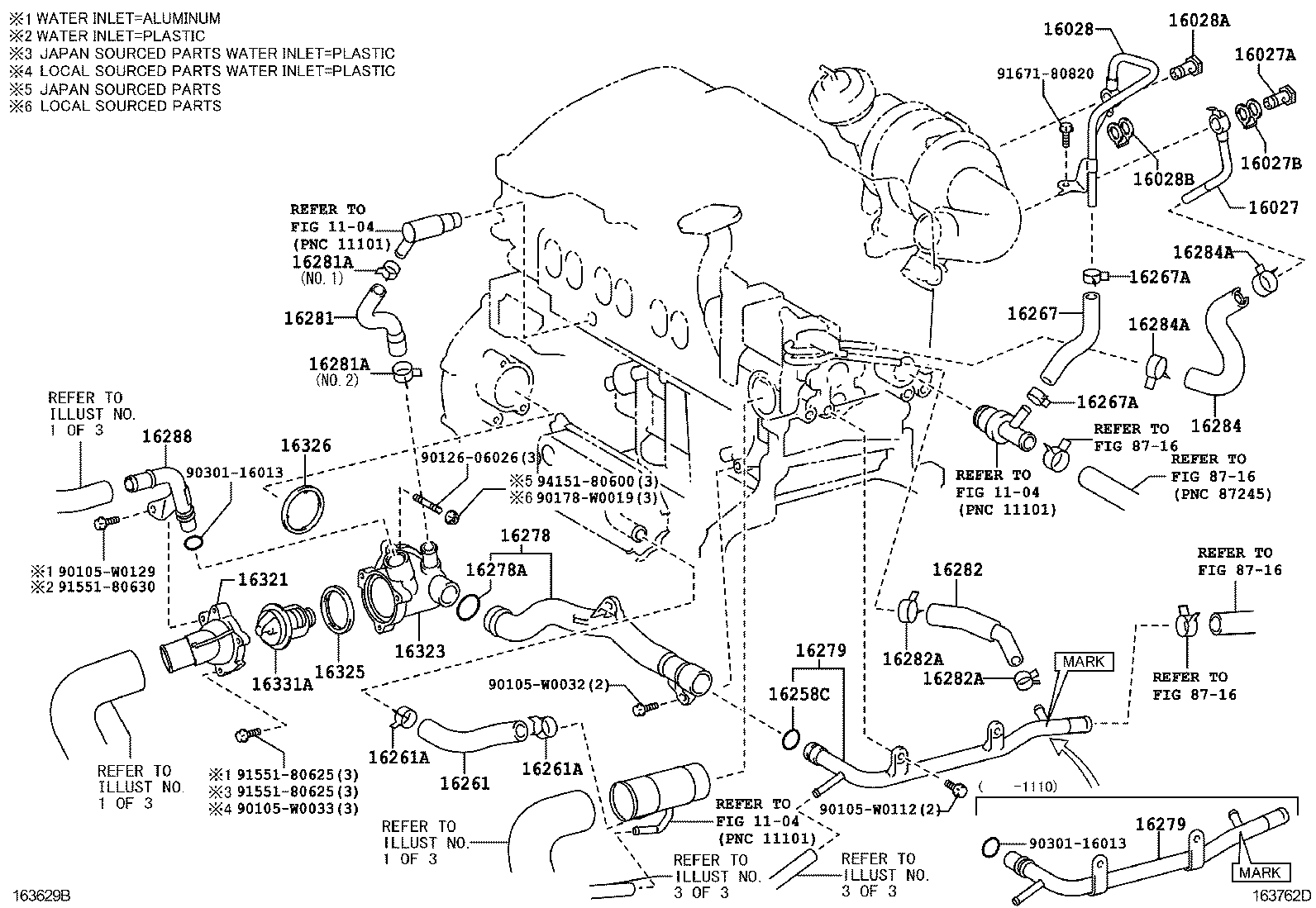

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 3(0902- )2ADFHV..6F

VERSO | RADIATOR WATER OUTLET ** Refer Fig ** Refer Fig ** Refer Fig 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16027A - BOLT, UNION(FOR TURBO WATER PIPE) 16027B - GASKET(FOR TURBO WATER PIPE) 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) 16028B - GASKET(FOR TURBO WATER PIPE NO.2) 16258C - GASKET(FOR WATER BY-PASS PIPE) 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16278 - PIPE, WATER BY-PASS, NO.2 16278A - GASKET, WATER BY-PASS 16279 - PIPE, WATER BY-PASS, NO.3 16279 - PIPE, WATER BY-PASS, NO.3 16281 - HOSE, WATER BY-PASS, NO.4 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16282 - HOSE, WATER BY-PASS, NO.5 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16284 - HOSE, TURBO WATER, NO.1 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16288 - PIPE, WATER BY-PASS, NO.4 16321 - INLET, WATER 16323 - HOUSING, WATER INLET 16325 - GASKET, WATER INLET HOUSING, NO.1 16326 - GASKET, WATER INLET HOUSING, NO.2 16331A - THERMOSTAT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
