TOYOTA COASTER XZB59R-ZEMQY5 / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

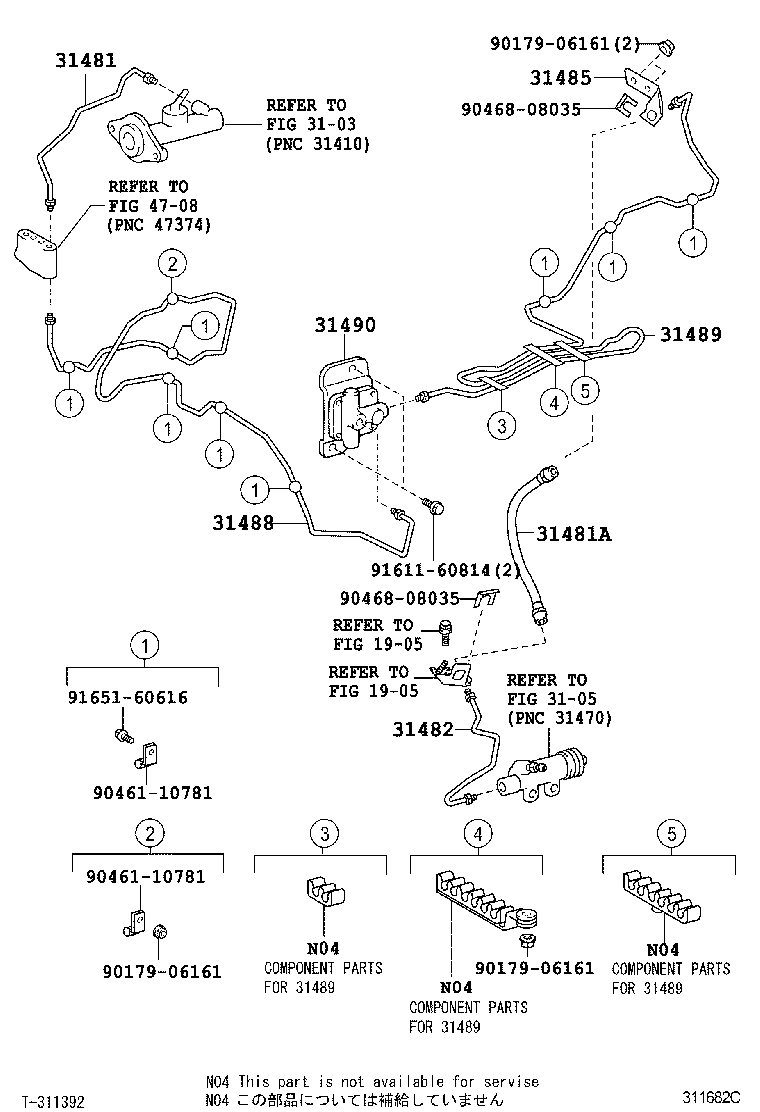

CLUTCH PEDAL FLEXIBLE HOSE

ILLUST NO. 2 OF 2(0608- )XZB40,5#..RHD..5F

 COASTER |  CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31481A - HOSE, CLUTCH, NO.1 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) 31488 - TUBE, CONNECTOR TO TUBE CONNECTOR 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE 31490 - ACCUMULATOR ASSY, CLUTCH ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
