TOYOTA PRIUS PLUG IN HBD ZVW35L-BHXEBW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

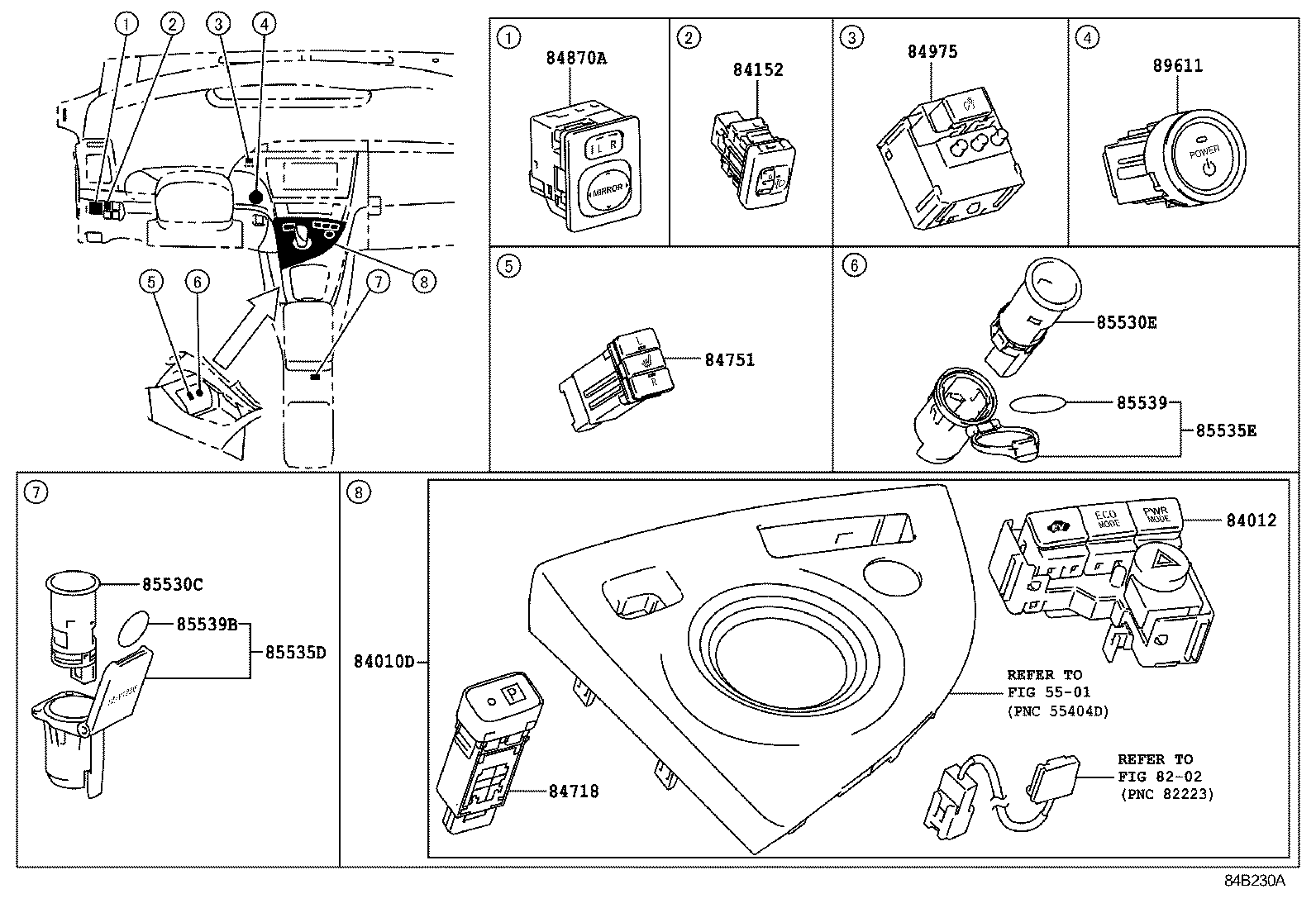

INSTRUMENT PANEL ILLUST NO. 4 OF 7(0912- )LHD

 PRIUS PLUG IN HBD |  SWITCH RELAY COMPUTER ** Refer Fig ** Refer Fig 84010D - CONTROL & PANEL ASSY, INTEGRATION 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION 84152 - SWITCH, HEADLAMP LEVELING 84718 - SWITCH, TRANSMISSION SHIFT MAIN 84751 - SWITCH, SEAT HEATER 84870A - SWITCH ASSY, OUTER MIRROR 84975 - SWITCH, TRIP 85530C - SOCKET ASSY, POWER OUTLET, CENTER 85530E - SOCKET ASSY, POWER OUTLET, NO.3 85535D - COVER, POWER OUTLET SOCKET, CENTER 85535E - COVER, POWER OUTLET SOCKET, NO.2 85539 - LABEL, POWER OUTLET NOTICE 85539B - LABEL, POWER OUTLET NOTICE, CENTER 89611 - SWITCH, PUSH START
