TOYOTA VERSO S NLP121L-CHLGXW / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

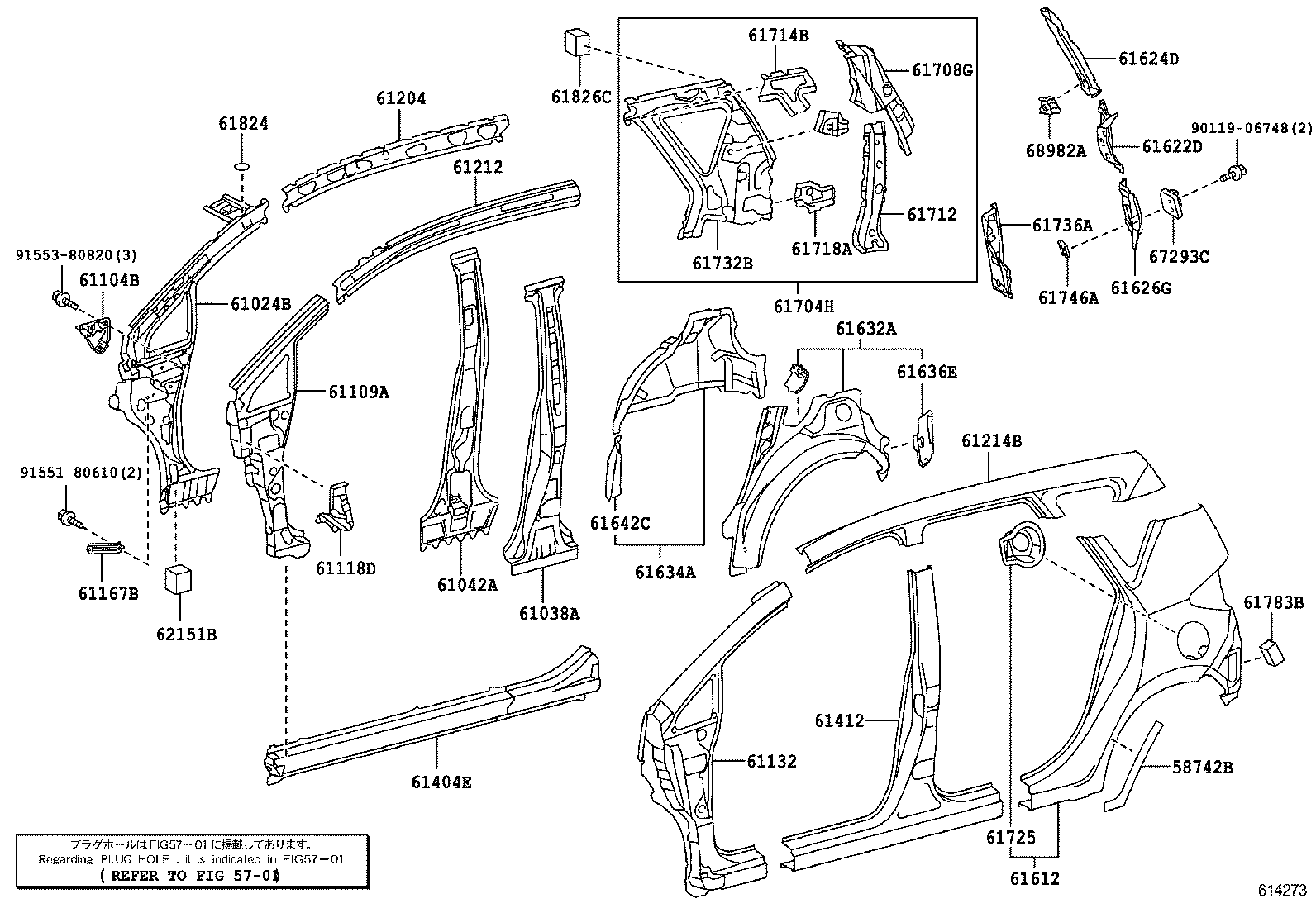

SIDE MEMBER

LH ILLUST NO. 2 OF 2(1011- )

VERSO S | SIDE MEMBER ** Refer Fig 58742B - PROTECTOR, QUARTER PANEL, LH 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH 61118D - GUSSET, SIDE PANEL TO COWL, LH 61132 - PILLAR, FRONT BODY, UPPER OUTER LH 61167B - BRACE, FRONT BODY PILLAR, LOWER 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH 61212 - RAIL, ROOF SIDE, OUTER LH 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH 61412 - PANEL, ROCKER, OUTER LH 61612 - PANEL, QUARTER, LH 61622D - TROUGH, BACK DOOR OPENING, LH 61624D - EXTENSION, QUARTER PANEL, FRONT LH 61626G - EXTENSION, QUARTER PANEL, REAR LH 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 61636E - EXTENSION, QUARTER WHEEL HOUSE, LH 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH 61704H - PANEL SUB-ASSY, QUARTER, INNER LH 61708G - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT LH 61712 - PANEL, ROOF SIDE, OUTER LH 61714B - REINFORCE, ROOF SIDE, OUTER LH 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH 61725 - BOX, FUEL INLET 61732B - PANEL, ROOF SIDE, INNER LH 61736A - PANEL, ROOF SIDE, INNER REAR LH 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 61824 - PLATE, NOISE CONTROL, NO.1 61826C - PAD, NOISE SHUTTER, NO.3 62151B - PAD, COWL SIDE SILENCER 67293C - CUSHION, BACK DOOR STOPPER 68982A - RETAINER, BACK DOOR STAY, LH ** Std Part ** Std Part ** Std Part
