TOYOTA VERSO S NLP121L-CHLGXW / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

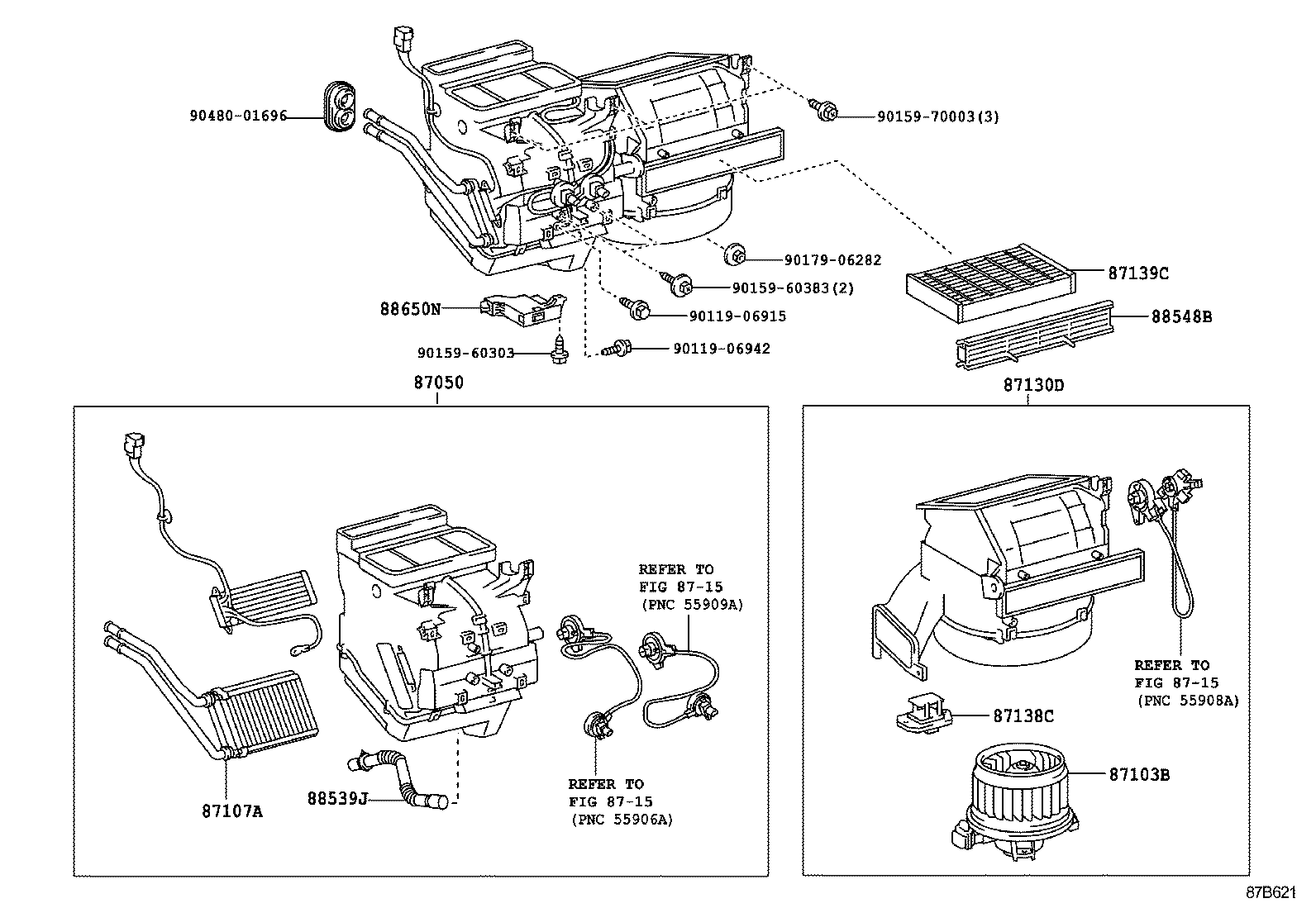

HEATING AIR CONDITIONING COOLER UNIT

W/O(AIR CONDITIONER) & W(HEATER) ILLUST NO. 1 OF 2(1011- )LHD

 VERSO S |  HEATING AIR CONDITIONING COOLER UNIT 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87130D - BLOWER ASSY 87138C - RESISTOR, BLOWER 87139C - FILTER, CLEAN AIR ** Refer Fig ** Refer Fig ** Refer Fig 88539J - HOSE, DRAIN COOLER 88548B - CASE, AIR FILTER 88650N - AMPLIFIER ASSY, AIR CONDITIONER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
