TOYOTA VERSO S NLP121L-CHLGXW / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING WATER PIPING

COLD SPEC (1011- )NLP121

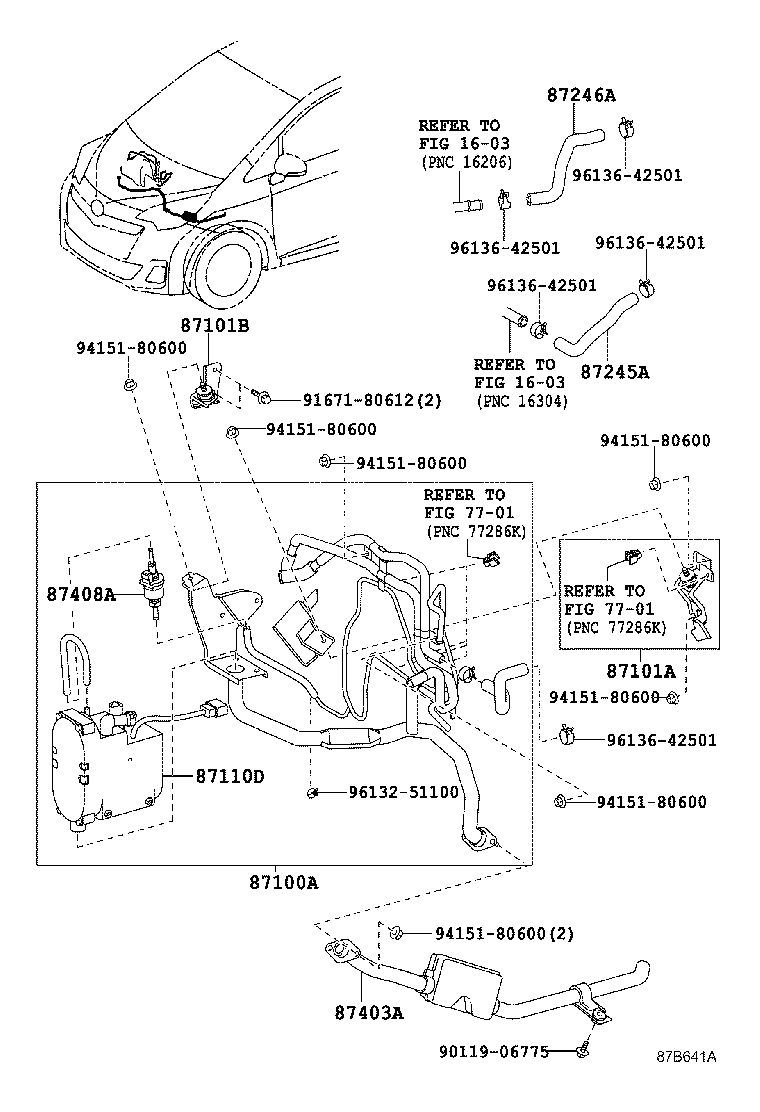

VERSO S | HEATING AIR CONDITIONING WATER PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87100A - HEATER & ACCESSORY ASSY 87101A - BRACKET SUB-ASSY, HEATER NO.1 87101B - BRACKET SUB-ASSY, HEATER NO.2 87110D - HEATER ASSY 87245A - HOSE, HEATER WATER, INLET A 87246A - HOSE, HEATER WATER, OUTLET A 87403A - PIPE SUB-ASSY, EXHAUST 87408A - PUMP SUB-ASSY, FUEL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
