TOYOTA DYNA XZU720L-TKFRLV3 / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

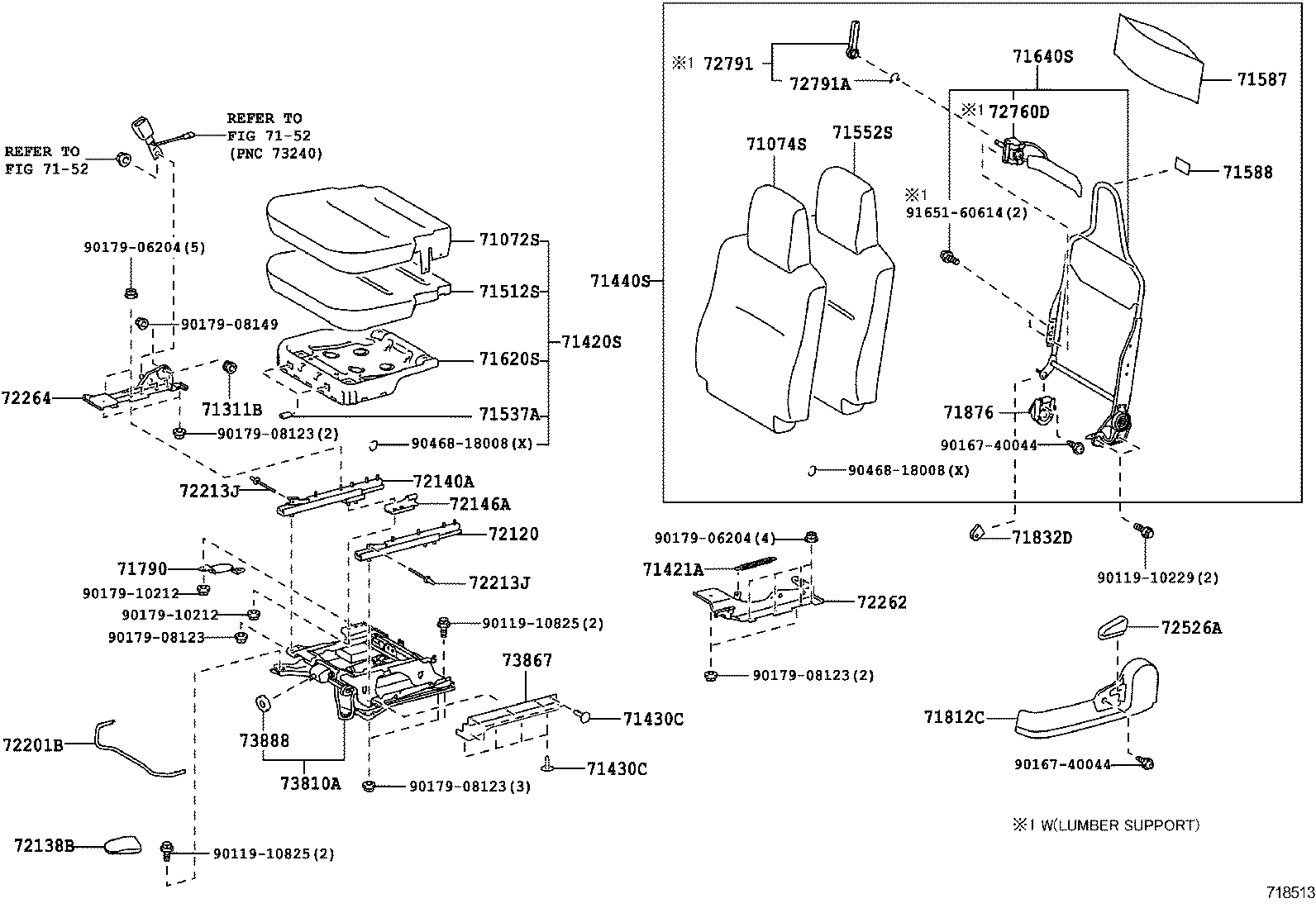

SEAT SEAT TRACK

DRIVER SEAT-W(SEAT SUSPENSION) (1107- )XZU710,720..6F,6FC ; (1306- )EUR

 DYNA |  SEAT SEAT TRACK 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71311B - BUSH (FOR FRONT SEAT HINGE PIN) 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71421A - SPRING, FRONT SEAT CUSHION 71430C - CLIP 71430C - CLIP 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig 71537A - PROTECTOR, FRONT SEAT CUSHION 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71587 - PROTECTOR, FRONT SEAT BACK EDGE 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71790 - BELT ASSY, SIDE SEAT 71812C - COVER, RECLINING ADJUSTER, LH 71832D - COVER, FRONT SEAT HINGE, LH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 72120 - TRACK ASSY, FRONT SEAT, OUTER LH 72138B - COVER, SEAT TRACK, LH 72140A - TRACK ASSY, FRONT SEAT,INNER LH 72146A - BRACKET, FRONT INNER SEAT TRACK, LOWER FRONT LH 72201B - HANDLE SUB-ASSY, SEAT TRACK LH 72213J - PIN, FRONT SEAT TRACK HANDLE SET 72213J - PIN, FRONT SEAT TRACK HANDLE SET 72262 - REINFORCEMENT, SEAT TRACK 72264 - REINFORCEMENT, INNER SEAT TRACK, LH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH 72791 - LEVER, LUMBAR SUPPORT 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) 73810A - SUSPENSION ASSY, SEAT, LH 73867 - GUARD, SEAT SUSPENSION, UPPER 73888 - HANDLE, SEAT SUSPENSION CONTROL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
