TOYOTA HILUX KUN25L-DRMSHW / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

RADIATOR WATER OUTLET

(1108-1203)1KDFTV..LHD..DCB..SR

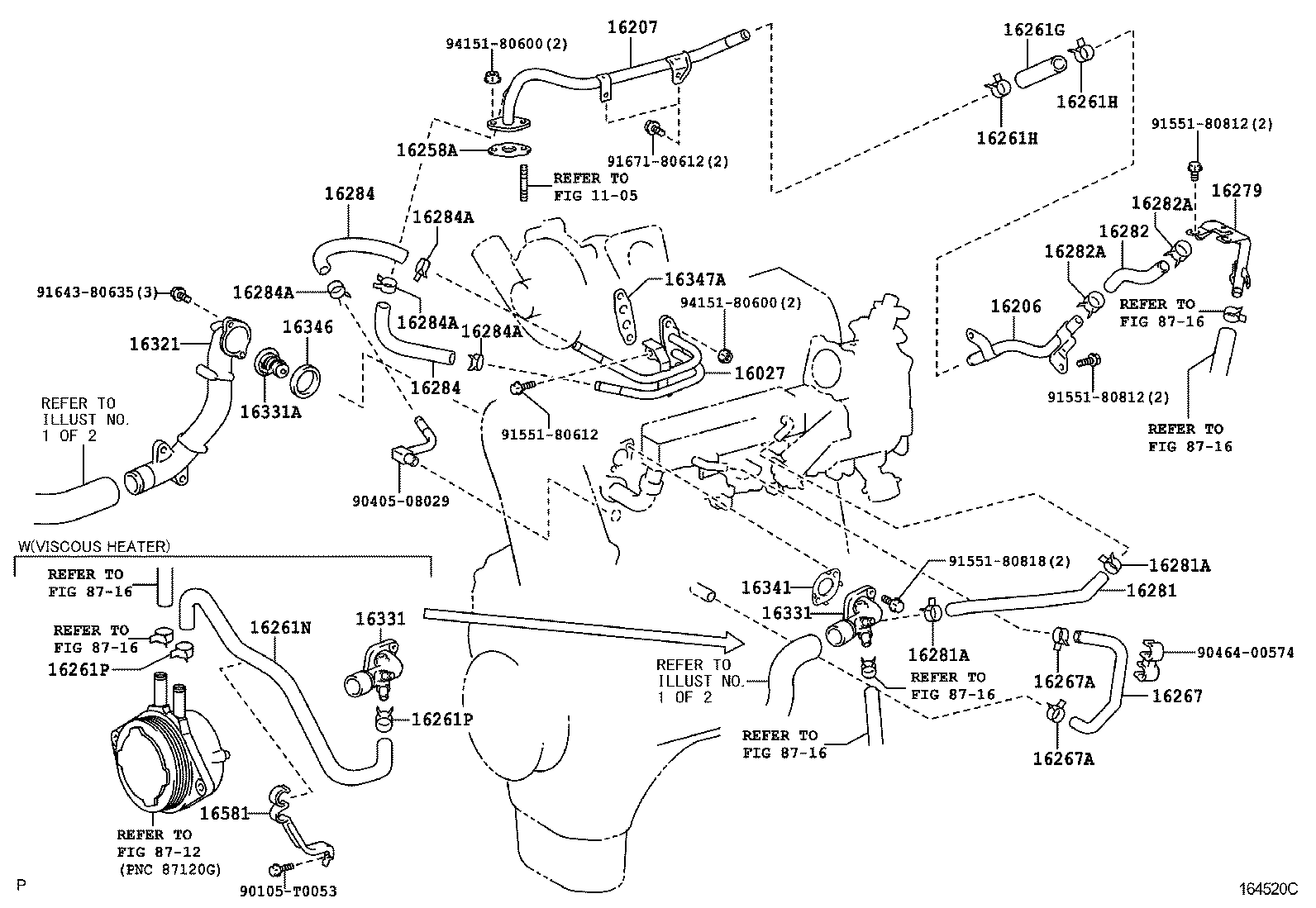

HILUX | RADIATOR WATER OUTLET ** Refer Fig 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16206 - PIPE SUB-ASSY, WATER BY-PASS 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 16258A - GASKET(FOR HEATER RETURN) 16261G - HOSE, WATER BY-PASS, NO.1 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261N - HOSE, WATER BY-PASS, NO.2 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16279 - PIPE, WATER BY-PASS, NO.3 16281 - HOSE, WATER BY-PASS, NO.4 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16282 - HOSE, WATER BY-PASS, NO.5 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16284 - HOSE, TURBO WATER, NO.1 16284 - HOSE, TURBO WATER, NO.1 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16321 - INLET, WATER 16331 - OUTLET, WATER 16331 - OUTLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16346 - GASKET, THERMOSTAT 16347A - GASKET(FOR TURBO WATER PIPE) 16581 - CLAMP, HOSE(FOR WATER HOSE) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
