TOYOTA IQ EV KPJ10L-CGDSSW / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

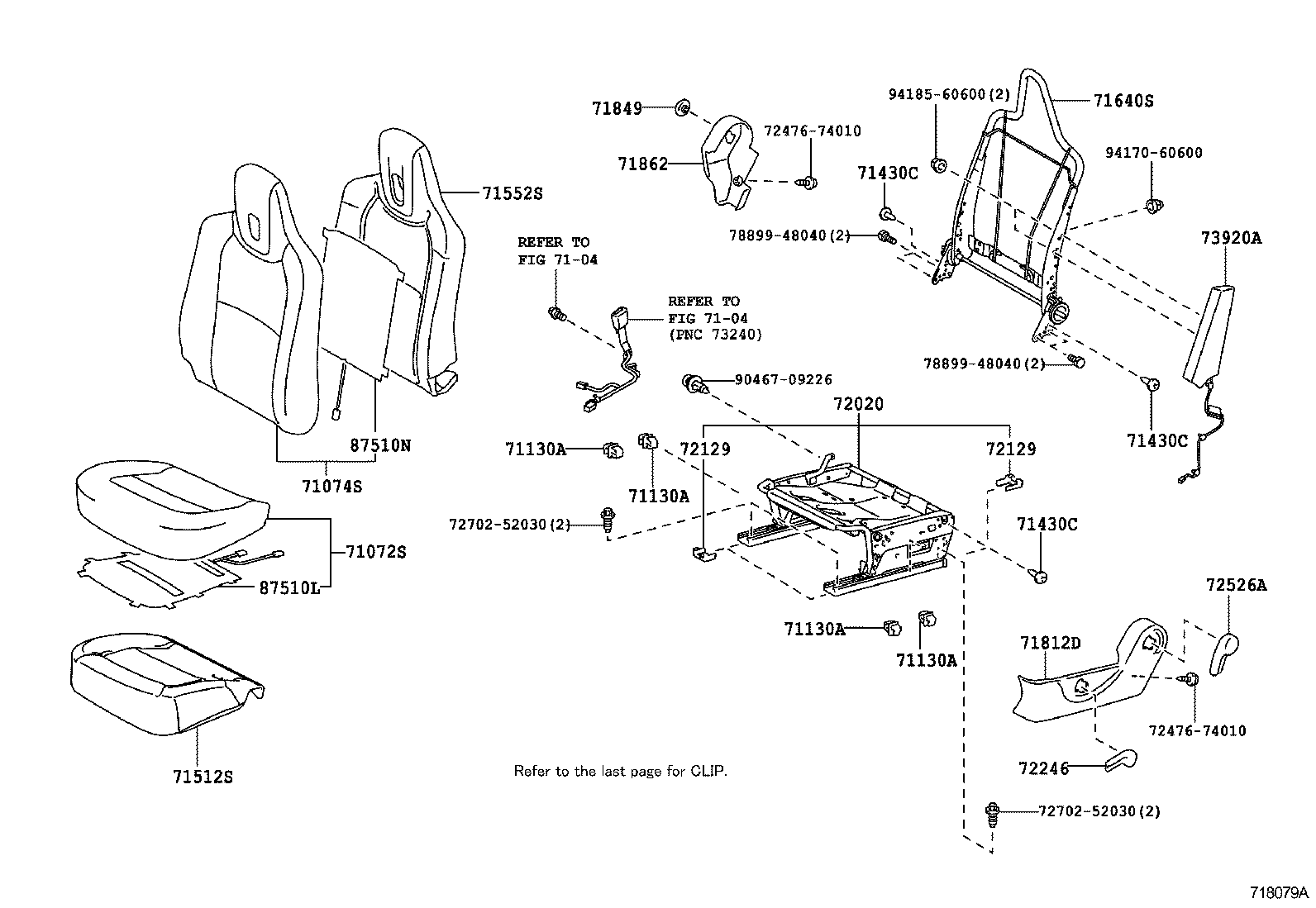

FRONT SEAT SEAT TRACK

DRIVER SEAT ILLUST NO. 1 OF 2(1209- )

IQ EV | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71130A - CLIP, FRONT SEAT LEG 71130A - CLIP, FRONT SEAT LEG 71130A - CLIP, FRONT SEAT LEG 71130A - CLIP, FRONT SEAT LEG 71430C - CLIP 71430C - CLIP 71430C - CLIP 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71812D - SHIELD, FRONT SEAT CUSHION, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 72020 - ADJUSTER ASSY, FRONT SEAT, LH 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 72246 - LEVER, SEAT TRACK LOCK OPEN, LH ** Std Part ** Std Part 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH ** Std Part ** Std Part 73920A - AIR BAG ASSY, FRONT SEAT, LH ** Std Part ** Std Part 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH 87510N - HEATER ASSY, FRONT SEAT BACK, LH ** Std Part ** Std Part ** Std Part
