TOYOTA IQ EV KPJ10L-CGDSSW / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

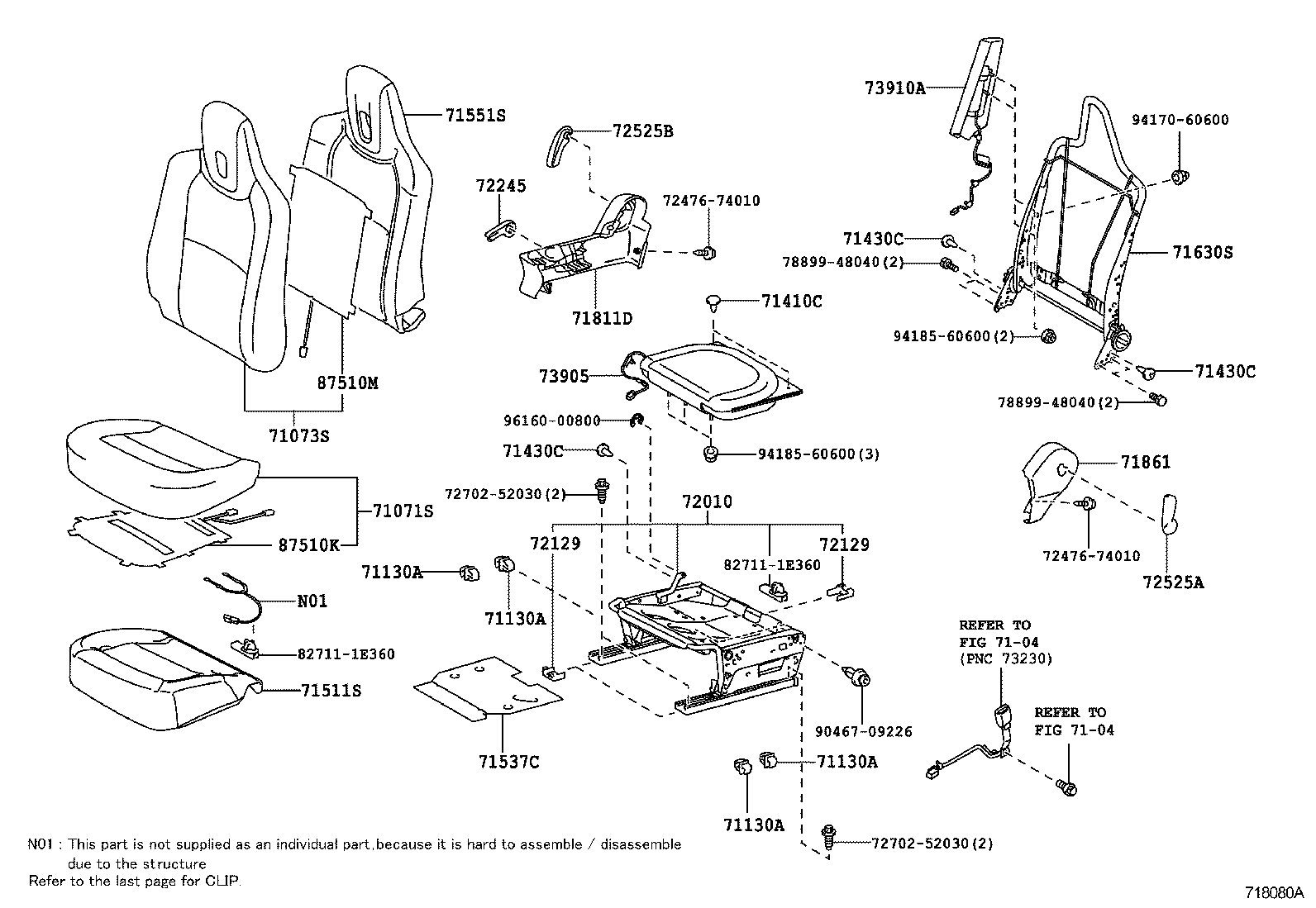

FRONT SEAT SEAT TRACK

PASSENGER SEAT ILLUST NO. 2 OF 2(1209- )

IQ EV | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71130A - CLIP, FRONT SEAT LEG 71130A - CLIP, FRONT SEAT LEG 71130A - CLIP, FRONT SEAT LEG 71130A - CLIP, FRONT SEAT LEG 71410C - CLIP(FOR FRONT SEAT CUSHION) 71430C - CLIP 71430C - CLIP 71430C - CLIP 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71811D - SHIELD, FRONT SEAT CUSHION, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 72010 - ADJUSTER ASSY, FRONT SEAT, RH 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 72245 - LEVER, SEAT TRACK LOCK OPEN, RH ** Std Part ** Std Part 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH ** Std Part ** Std Part 73905 - AIR BAG SUB-ASSY, FRONT SEAT, RH 73910A - AIR BAG ASSY, FRONT SEAT, RH ** Std Part ** Std Part ** Std Part ** Std Part 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH 87510M - HEATER ASSY, FRONT SEAT BACK, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
