TOYOTA IQ EV KPJ10L-CGDSSW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COOLER PIPING

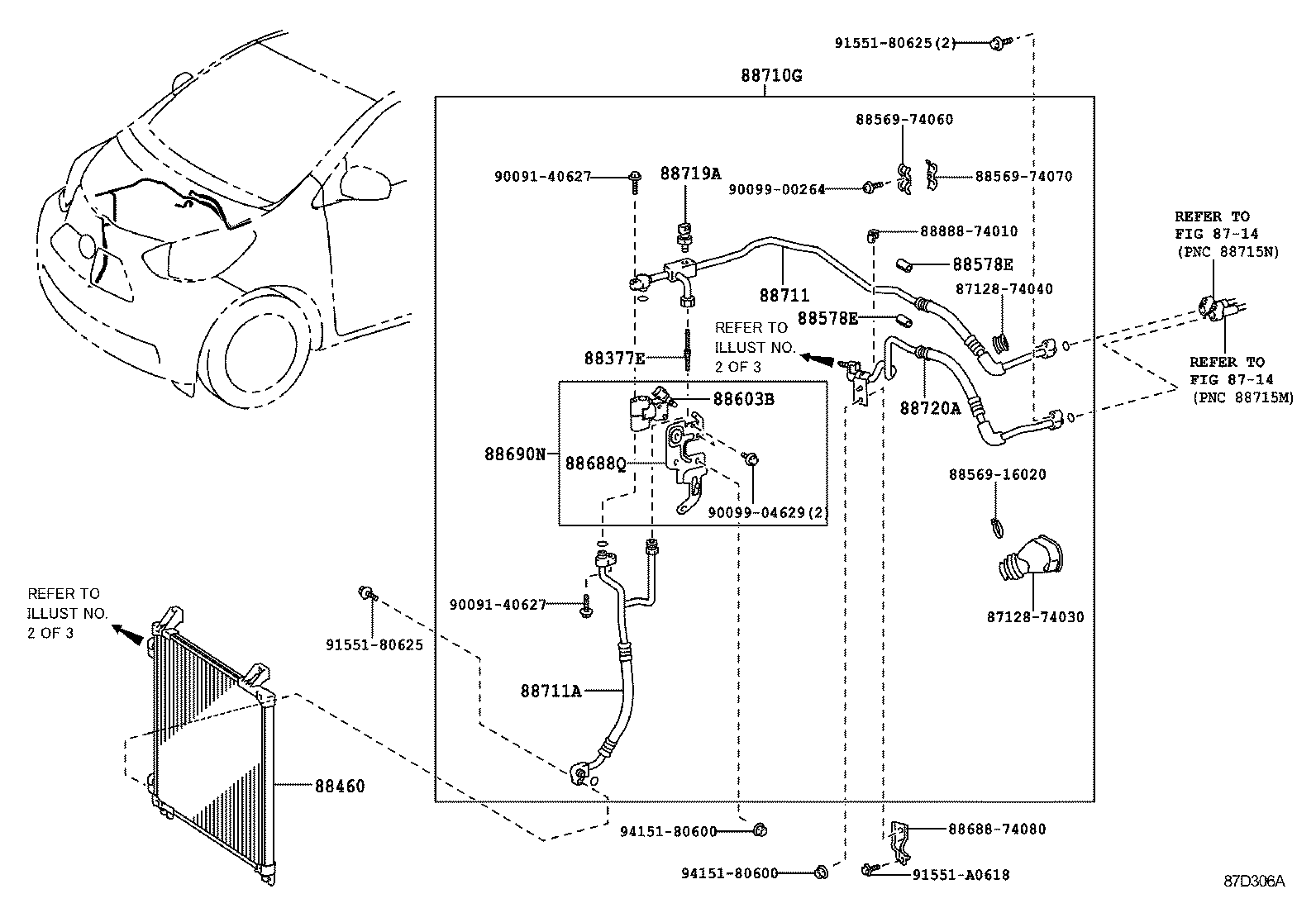

ILLUST NO. 1 OF 3(1209- )

IQ EV | HEATING AIR CONDITIONING COOLER PIPING ** Std Part ** Std Part ** Refer Fig ** Refer Fig 88377E - FILTER, REFRIGERANT, NO.2 88460 - CONDENSER ASSY, COOLER ** Std Part ** Std Part ** Std Part 88578E - PACKING, COOLER PIPE, NO.2 88578E - PACKING, COOLER PIPE, NO.2 88603B - VALVE SUB-ASSY, MAGNET ** Std Part 88688Q - BRACKET (FOR MAGNET VALVE) 88690N - VALVE ASSY, MAGNET, NO.2 88710G - TUBE & ACCESSORY ASSY, AIRCONDITIONER, NO.2 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 88719A - SENSOR, AIRCONDITIONER PRESSURE 88720A - HOSE & ACCESSORY, AIRCONDITIONER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
