TOYOTA IQ EV KPJ10L-CGDSSW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COOLER PIPING

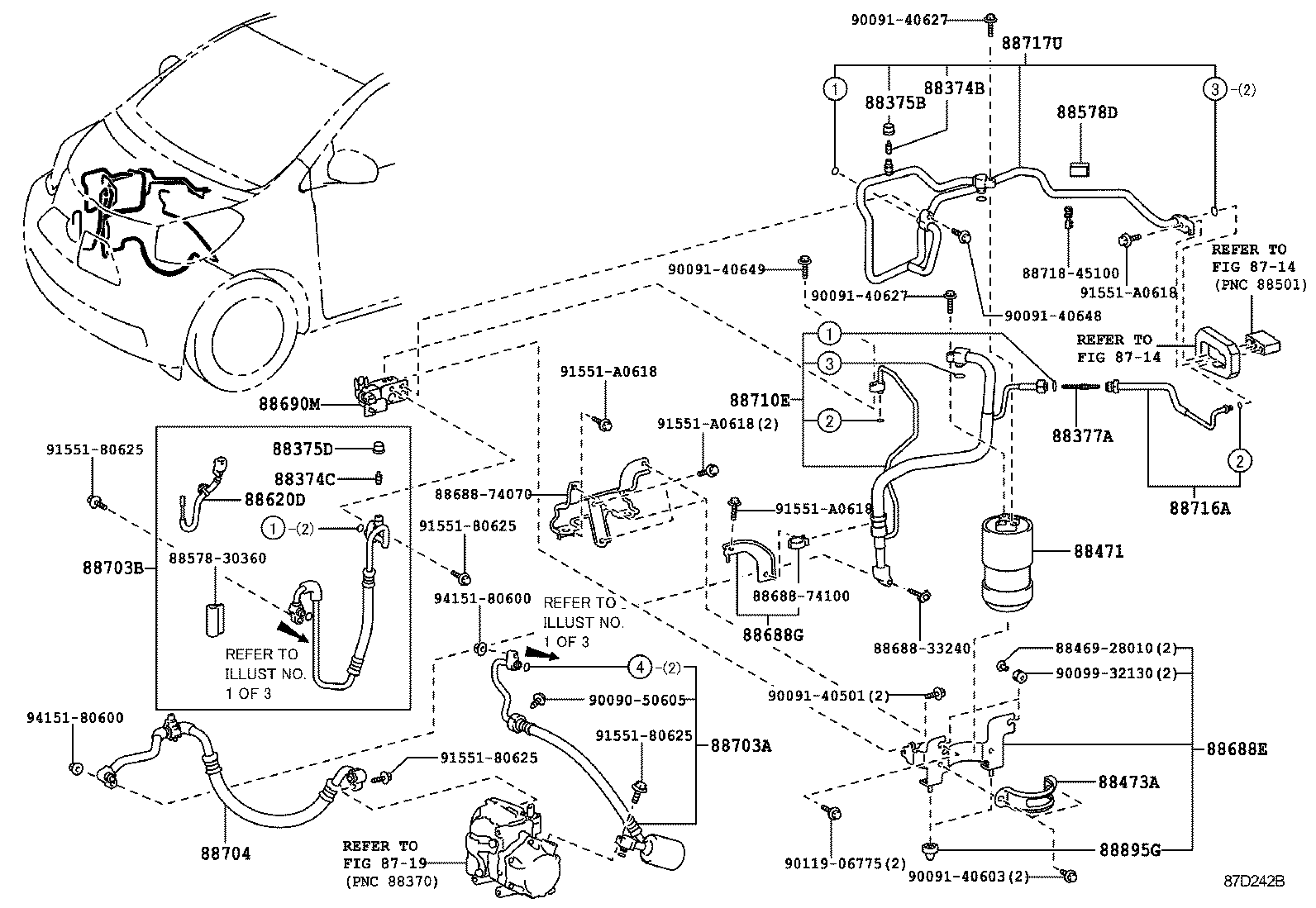

ILLUST NO. 2 OF 3(1209- )

IQ EV | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88377A - FILTER, REFRIGERANT ** Std Part 88471 - TANK, RECEIVER AIR CONDITIONER 88473A - HOLDER, RECEIVER ** Std Part 88578D - PACKING, COOLER PIPE, NO.1 88620D - THERMOSTAT ASSY ** Std Part ** Std Part ** Std Part 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 88688G - BRACKET, COOLER REFRIGERANT PIPE 88690M - VALVE ASSY, MAGNET, NO.1 88703A - HOSE SUB-ASSY, DISCHARGE, NO.1 88703B - HOSE SUB-ASSY, DISCHARGE, NO.2 88704 - HOSE SUB-ASSY, SUCTION 88710E - TUBE & ACCESSORY ASSY, AIRCONDITIONER 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88717U - TUBE, SUCTION, NO.1 ** Std Part 88895G - BUSH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
