TOYOTA RAV4 ACA30R-AWMGKW / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

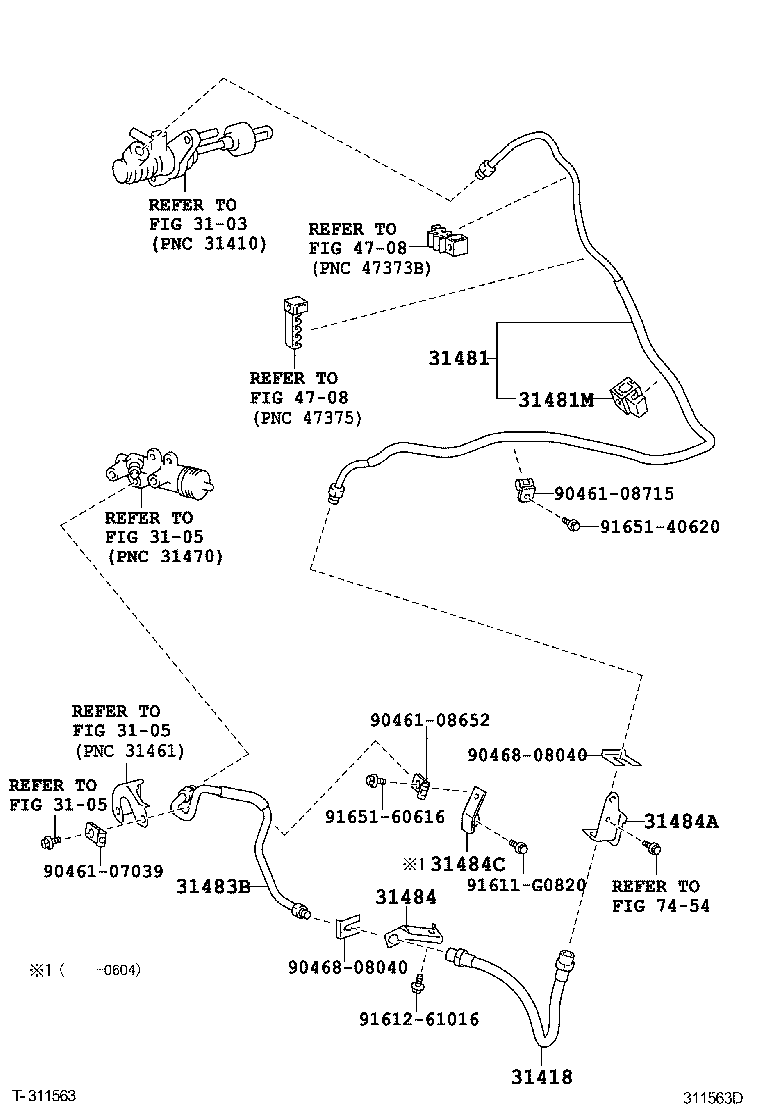

CLUTCH PEDAL FLEXIBLE HOSE

ILLUST NO. 2 OF 2(0511- )ACA30..RHD..5F

 RAV4 |  CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 31418 - HOSE, CLUTCH 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) 31484C - BRACKET, CLUTCH TUBE, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
