TOYOTA AURIS HYBRID UKP NDE180L-DHLNXW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

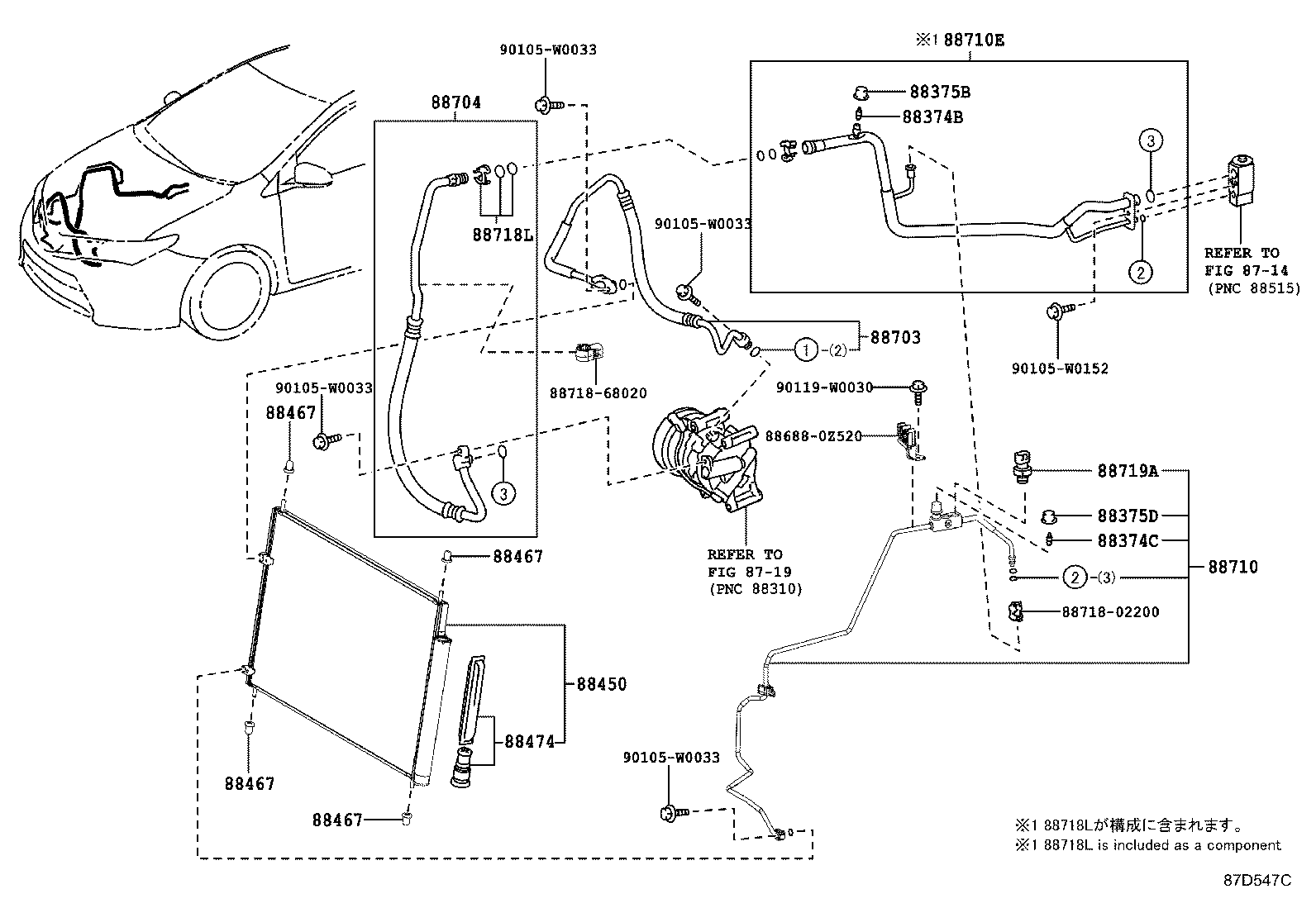

HEATING AIR CONDITIONING COOLER PIPING

W(REFRIGERANT:R-1234YF) ILLUST NO. 1 OF 2(1302- )NDE180

AURIS HYBRID UKP | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88450 - CONDENSER ASSY, W/RECEIVER 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88474 - DRYER, COOLER ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88710 - TUBE ASSY, AIRCONDITIONER 88710E - TUBE & ACCESSORY ASSY, AIRCONDITIONER ** Std Part ** Std Part 88718L - CLAMP, PIPING 88719A - SENSOR, AIRCONDITIONER PRESSURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
