TOYOTA DYNA XZU720L-TKFRSW3 / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

CLUTCH PEDAL FLEXIBLE HOSE

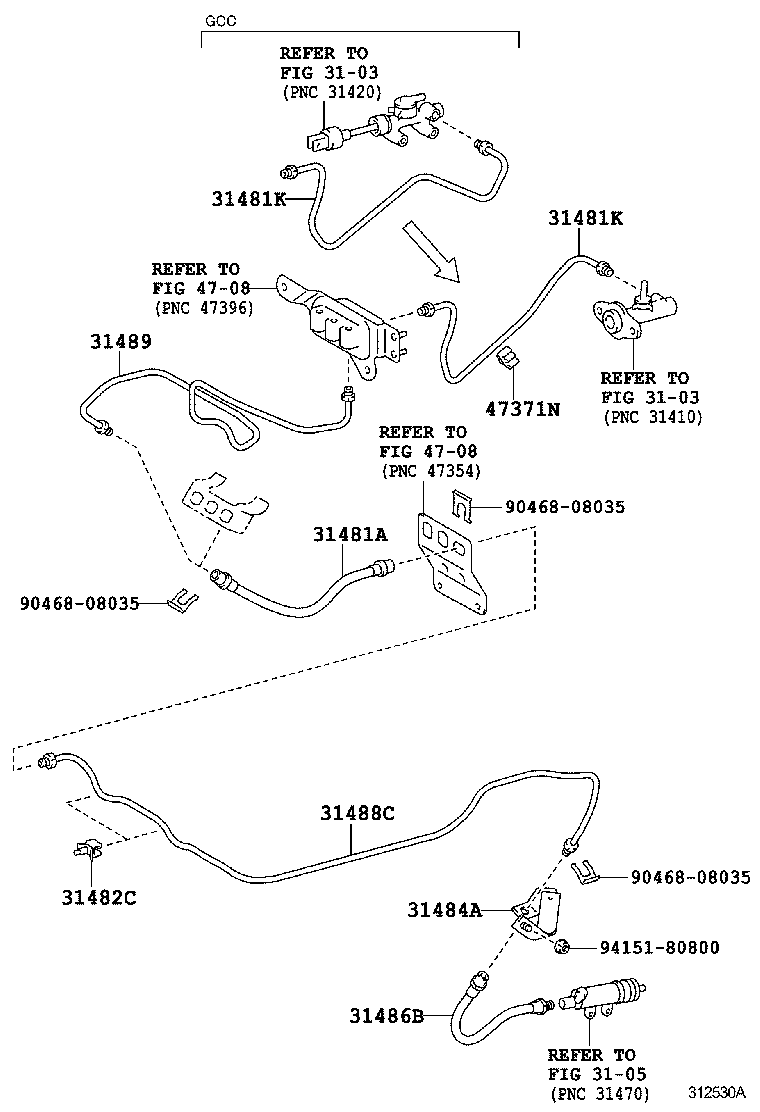

ILLUST NO. 2 OF 2(1107- )XZU710,720,730..IV3

DYNA | CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig ** Refer Fig 31481A - HOSE, CLUTCH, NO.1 31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR 31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR 31482C - CLAMP(FOR CLUTCH TUBE) 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) 31486B - HOSE, MASTER CYLINDER TO RELEASE CYLINDER 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE ** Refer Fig ** Refer Fig 47371N - CLAMP, BRAKE TUBE ** Std Part ** Std Part ** Std Part ** Std Part
