TOYOTA GT86 86 ZN6BK-E7 / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PARKING BRAKE CABLE

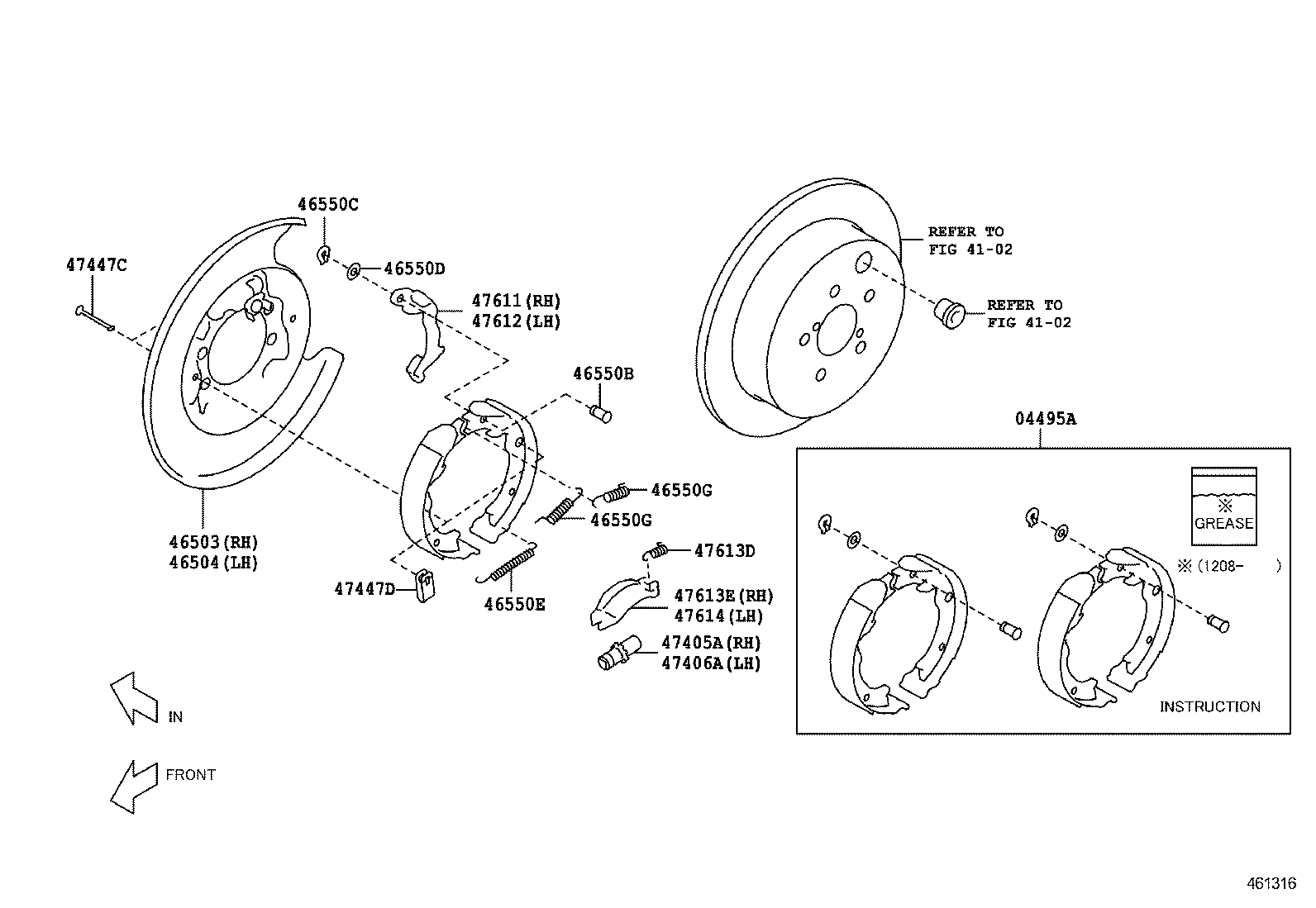

ILLUST NO. 2 OF 2(1204- )BASE,HI,LOW,LOWC

 GT86 86 |  PARKING BRAKE CABLE 04495A - SHOE KIT, PARKING BRAKE ** Refer Fig ** Refer Fig 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH 46550B - PIN(FOR PARKING BRAKE SHOE) 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) 46550D - WASHER, WAVE(FOR PARKING BRAKE SHOE) 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) 47611 - LEVER, PARKING BRAKE SHOE, RH 47612 - LEVER, PARKING BRAKE SHOE, LH 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) 47613E - STRUT, PARKING BRAKE SHOE, RH 47614 - STRUT, PARKING BRAKE SHOE, LH
