TOYOTA GT86 86 ZN6BL-E8 / TOOL-ENGINE-FUEL / EXHAUST PIPE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

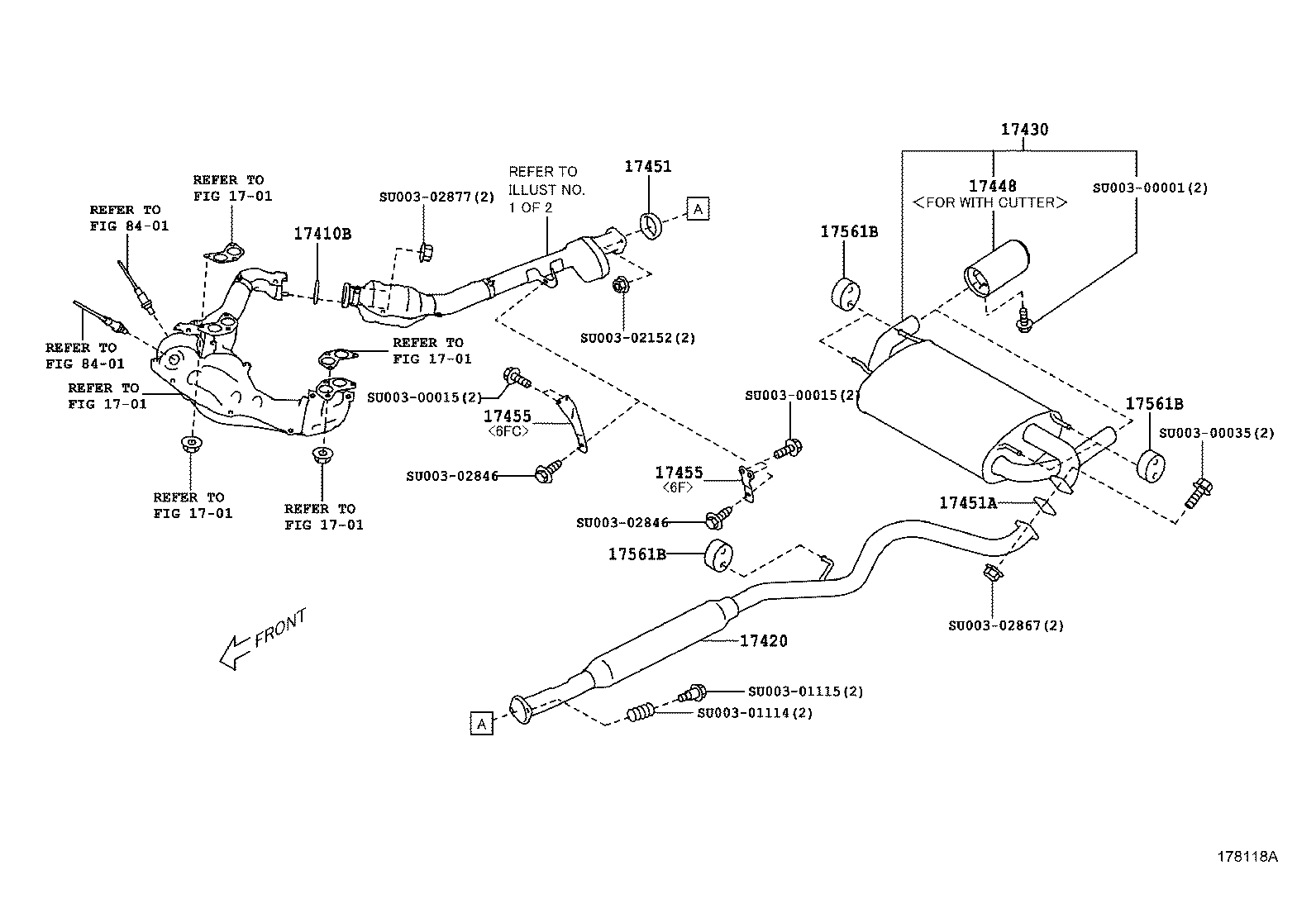

EXHAUST PIPE

KS SPEC ILLUST NO. 2 OF 2(1308- )FA20..ZN6BL..BASE,HI

GT86 86 | EXHAUST PIPE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 17410B - GASKET, EXHAUST PIPE 17420 - PIPE ASSY, EXHAUST, CENTER 17430 - PIPE ASSY, EXHAUST, TAIL 17448 - BAFFLE, TAIL PIPE 17451 - GASKET, EXHAUST PIPE 17451A - GASKET, EXHAUST PIPE, NO.2 17455 - BRACKET, EXHAUST PIPE 17455 - BRACKET, EXHAUST PIPE 17561B - SUPPORT, EXHAUST PIPE, NO.1 17561B - SUPPORT, EXHAUST PIPE, NO.1 17561B - SUPPORT, EXHAUST PIPE, NO.1 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
