TOYOTA GT86 86 ZN6CL-E7 / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

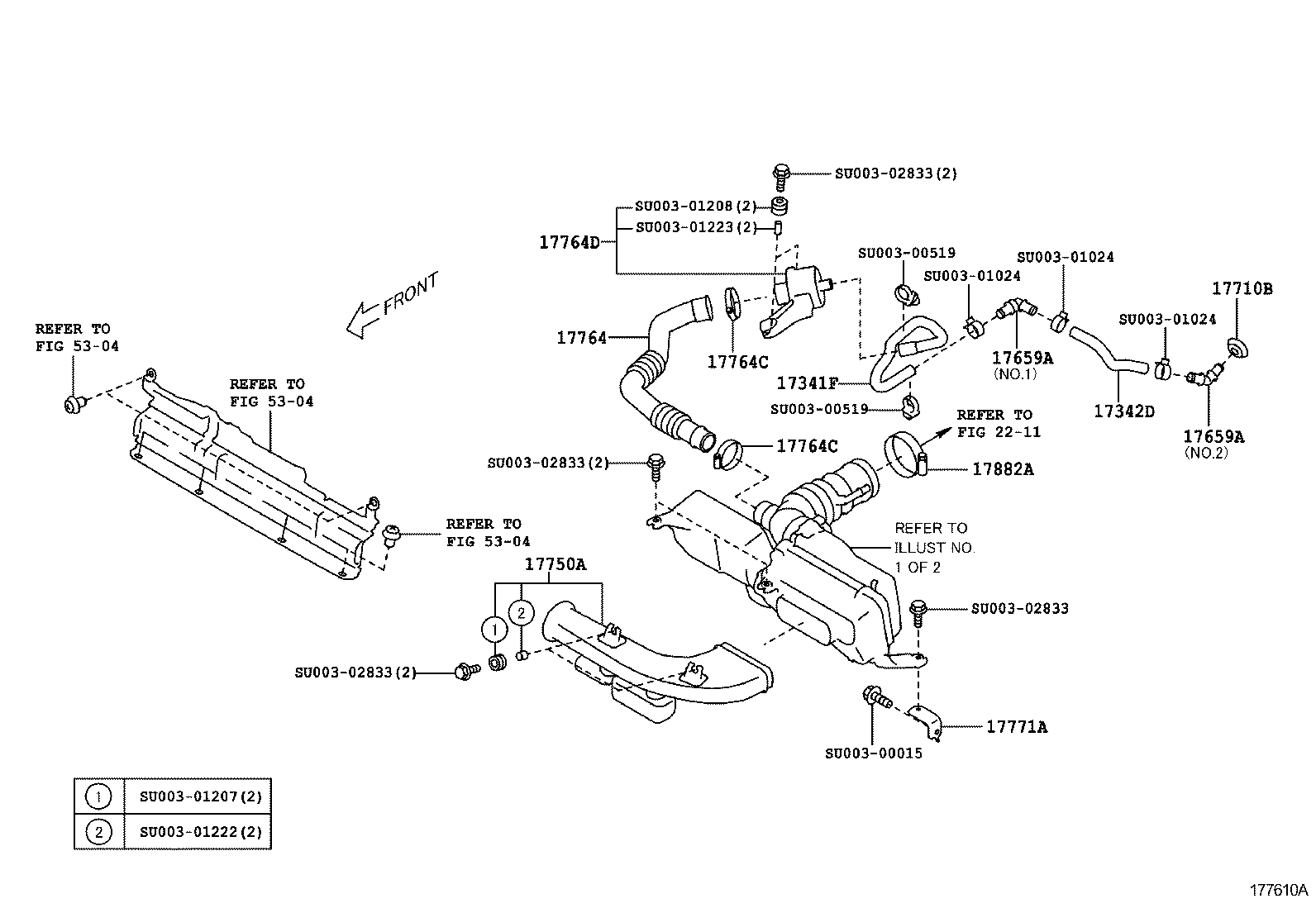

ILLUST NO. 2 OF 2(1204- )FA20..BASE,HI,LOW,LOWC

 GT86 86 |  AIR CLEANER 17341F - HOSE, AIR, NO.1 17342D - HOSE, AIR, NO.2 17659A - CONNECTOR, AIR 17659A - CONNECTOR, AIR 17710B - GROMMET 17750A - INLET ASSY, AIR CLEANER 17764 - DUCT, AIR CLEANER 17764C - CLAMP, HOSE(FOR AIR CLEANER DUCT) 17764C - CLAMP, HOSE(FOR AIR CLEANER DUCT) 17764D - CHAMBER ASSY 17771A - BRACKET, AIR CLEANER 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
